Horizontal Backwash Spin Down Sediment Filter
Product Specifications
| Attribute |
Value |
| Product Name |
Horizontal Backwash Spin Down Sediment Filter |
| Miron Rating |
40 Microns (customizable) |
| Application |
Whole House Water Filtration |
| Fitting Size |
3/4", 1" (customizable) |
| Special Feature |
Dual Filtration System, Self-cleaning |
| Product Dimensions |
9.83"L x 3.98"W x 3.24"H |
| Maximum Flow Rate |
7T/H |
| Applicable Water Temperature |
1~40℃ |
Product Overview
In both residential and commercial water systems, large particles such as sediment, sand, and rust, as well as smaller contaminants like insect eggs and colloids, can cause significant problems. Fine mesh filters (e.g., 40 microns) effectively block small particles but clog easily, while coarse mesh filters (e.g., 500 microns) maintain strong flow but filter less efficiently. Our solution delivers both high filtration precision and clog resistance.

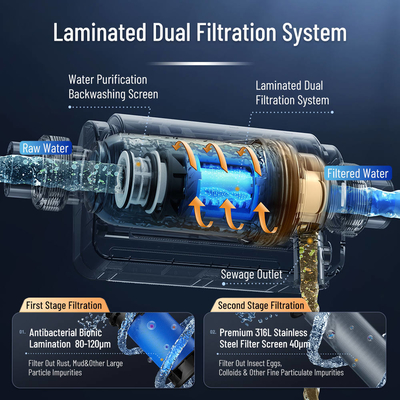

Dual Filtration Technology
- Stage 1: Antibacterial Bionic Coating (80-120 microns) - Removes large particles such as rust and sand while reducing clogging and adapting to various water qualities.
- Stage 2: High-Precision Stainless Steel Mesh - Captures small particles like insect eggs and colloids for deeper purification.
This dual system removes up to 99% of impurities, storing them in a sediment chamber for easy flushing and cleaning.
Antibacterial & Anti-Algae Performance
The antibacterial bionic coating improves filtration, extends filter life, and inhibits bacterial and algae growth inside the unit. This maintains stable water pressure, prevents clogging, reduces secondary contamination, and keeps the system clean and efficient over time.
Additional Features
- Full in-house production: design, molding, injection, and brass processing
- Certified by NSF, SGS, and RoHS (most models)
- 10 generations of backwash upgrades, including siphon backwash
- OEM/ODM services for brands such as Honeywell, Pentair, and iSpring
Global Recognition
BriskSpring cyclone flush pre-filters are used in over 30 countries, known for durability and consistent performance. U.S. customers report long-lasting quality and excellent results.
Frequently Asked Questions
How does the pre-filter remove large particles like sediment and sand?
Through mechanical filtration, optional activated carbon (for some models), multi-stage progressive filtering, and backwash/siphon backwash.
Are you a factory in China?
Yes, we are a leading manufacturer of water filtration systems and a contributor to industry standards.
How do you ensure quality?
Material inspection -> In-process monitoring -> 100% final inspection -> Random sampling -> Pre-shipment check, all under ISO standards.
Can I customize my brand logo?
Yes, we provide OEM/ODM for brands including HONEYWELL and PHILIPS.
How can I get samples?
Contact Key Customer Support Nick anytime.
What is your lead time?
With a monthly capacity of 150,000 units, delivery is 7-25 days depending on order size, model, and packaging.
Why choose BriskSpring?
Full industry chain production, international certifications, 10 generations of upgrades, proven performance in 30+ countries.
