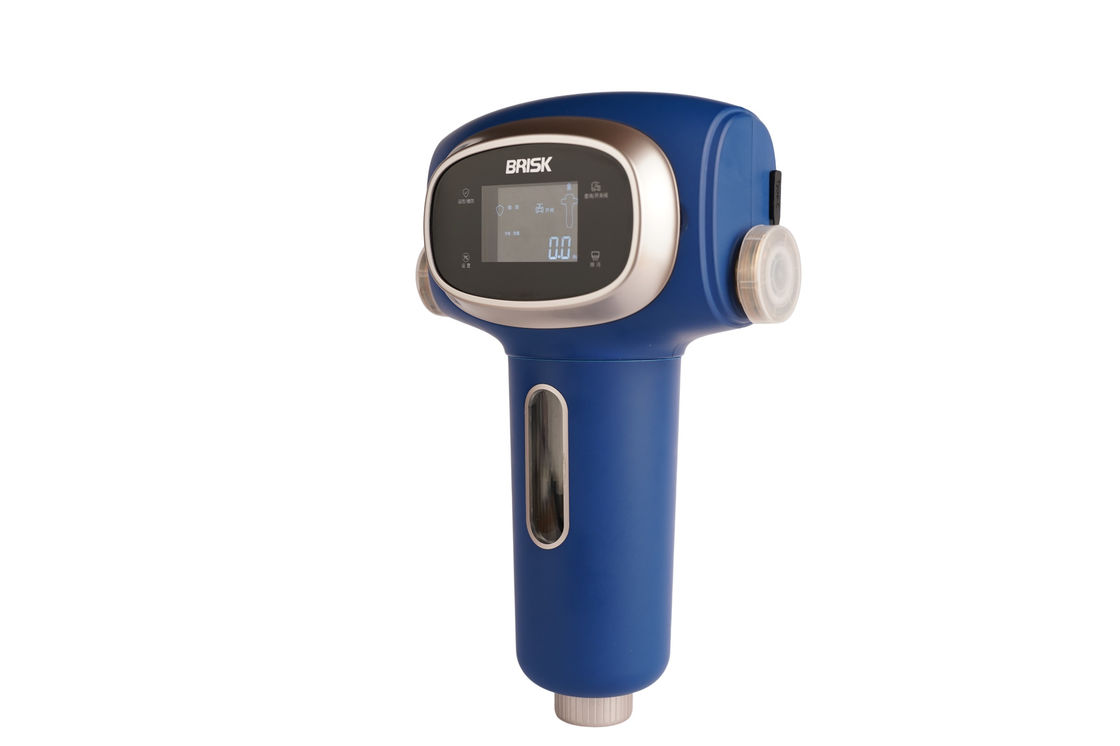

Flume Smart Leak Detector

High Accuracy Blue Ultrasonic AI Water Leakage Protector With App Alert

What Is A Water Leakage Detector?

A leak detection system monitors the flow of water through a pipeline. When abnormal behavior is detected, the system cuts off the water flow to the entirety of the household by closing a valve within the leak detector. Leak detection systems are usually installed at the water's point of entry into the home.

Product Details

Development Of Water Leakage Protection Technology

1 - Name: Distributed probe technology

  - Theory: When water touches the electrode, raise the alarm and close the valve.

  - Problems: 1) False alarms in humid environments, high false alarm rate.

                      2) The monitoring range is limited, the distribution position is difficult to determine, and the internal leakage cannot be identified.

2 - Name: Hall detection mechanical measurement technology. (Mechanical gear type)

   - Theory: The gear is driven by the water flow to mechanically measure the one-time water consumption or

                   the time of one-time water use, and the valve will be closed if it exceeds the set the alarm.

   - Problems: 1) Driven by gears, affected by water quality, low precision, small range ratio, and short life;

                          It can only be installed horizontally or vertically.

                      2) The monitoring range is limited, the distribution position is difficult to determine, and the internal leakage cannot be identified.

3 - Name: Ultrasonic detection mechanical measurement technology

   - Theory: Accurately measure the one-time water consumption or the one-time water duration through ultrasonic waves,

                  and the alarm will close the valve if it exceeds the set value.

   - Problems: 1) The algorithm is limited, and only one-time continuous water consumption time and one-time continuous water consumption can                             be used (consumers cannot set it, and the false positive rate is high)

4 - Name: AI Adaptive Ultrasonic Measurement Leak-proof Technology

   - Theory: Ultrasonic precision measurement technology is adopted, and the water leakage signal can be accurately captured through AI                                intelligent calculation. The alarm can be sent through the Internet, the user can be notified, and the valve can be closed.

   - Advantages: 1) Long life, no resistance to water flow, no pressure loss, not affected by bad water quality.

                          2) High precision, large range ratio, no pressure loss, can accurately capture flow abnormalities from 2 liters/H (micro-leakage) to                                4 tons/H (burst pipe); users do not need complicated settings, AI calculation, and the false alarm rate is extremely low.

Main Why Choose Briskspring Water Leak Sensor

1. High-precision ultrasonic metering, can monitor 2L/H-4T/H ultra-large range, whether leakage, dripping, burst pipe can be fully monitored, alarm, and automatically close the valve.

2. It can monitor various water information such as water temperature, water pressure, flow rate, flow rate, etc.

3. It can be equipped with various wireless communication schemes such as WIFI

4. Can be equipped with APP remote control function.

5. Simple user mode setting: for a family of 2, choose mode 1; for a family of 3-5, choose mode 2; for a family of 6 or more, choose mode 3.

FAQ:

Q1: Are you a manufacturer?

A: Yes. We are a top manufacturer of water filters in china and an industry leader and standard drafting units. For the water prefilters, we already developed over 10 generations of different types of washing modes for the filters.

Q2: Can we use our logo/brand?

A. Yes, we already do OEM and ODM with famous brands like Honeywell, Pentair, Vaillant, and many other first-tier brands in the world.

Q3: Can you offer sample to check the quantity?

A: Yes. We offer agent prices for samples.

Q4: What's the order delivery time?

A: Our capacity of production is 1500000 units per month and the Lead time is according to the order quantity, order models, and packing. Generally, it takes about 7-25 days.
