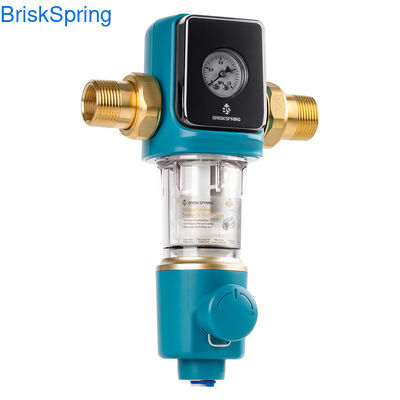

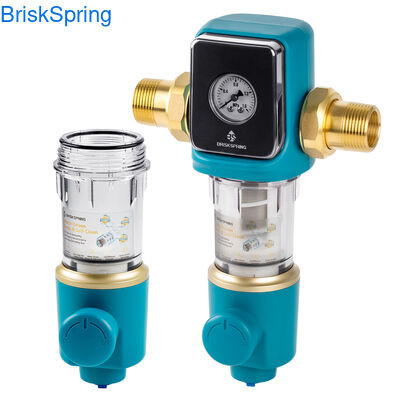

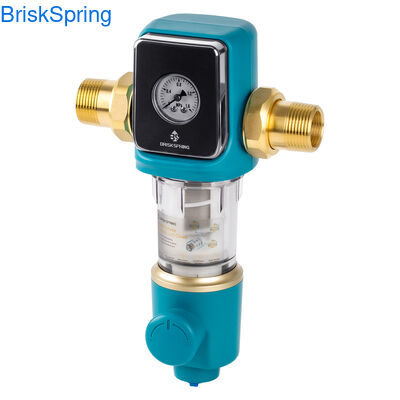

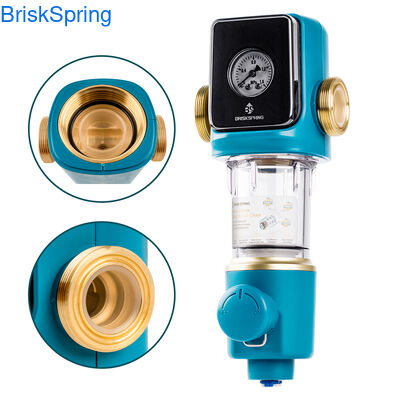

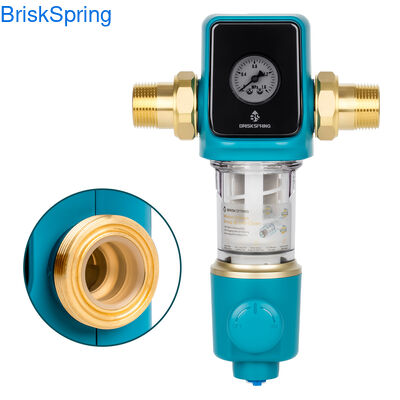

Water Pre Filter Lightweight Whole House System
Lightweight 1.08KG whole-house pre-filter with anti-block structure and systemwide protection. Features high flow tap water filtration with food-grade stainless steel screen for safe household water filtration.
Why Install a Pre-Filter?
The BriskSpring Pre-Filter plays a crucial role in protecting your home's water system and appliances from sediment and impurities.
Key Product Information
The BRISKSPRING Pre-Filter is a compact, lightweight solution at 1.08KG, designed for easy installation. Its SUS 316 stainless steel mesh ensures corrosion resistance and long-lasting performance. With a capacity of 5 tons per hour and 22 GPM flow rate, it efficiently removes sediment, rust, and impurities. Compatible with most home water systems, it functions under 0.15-1 MPa pressure.
Featuring a built-in sediment trap, cleaning and maintenance are simple. Switching to the BRISKSPRING Pre-Filter reduces bottled water usage, lowers expenses, and provides fresh, safe tap water for a healthier, more sustainable lifestyle.
Primary Features
- Clog-Resistant Design - Water flow powers a scraper that continuously cleans mesh and filter housing. Minimal manual maintenance required—only occasional flushing. Includes clear pressure gauge for monitoring.
- Full-System Protection - Filters sediment, rust, sand, debris, and insect eggs. Safeguards household health and protects connected appliances including faucets, showers, garden hoses, water heaters, washing machines, and RO systems.
- Certified Safe Materials - Constructed from SGS-certified BPA-free plastic, 316L stainless steel mesh, silicone scraper, and 95% POM. Lead-free and non-toxic for safe, long-lasting use.
Technical Specifications
| Model Number |
Pre-10th generation (SQ-550-B) |
| Control |
Manual and Automatic Cleaning |
| Flow Rate |
22 Gallons Per Minute |
| Operating Temperature |
+5℃ ~ +45℃ |
| Mesh Material |
SUS 316 Stainless Steel |
| Filter Rating |
40μm And 300μm |
| Applicable Water Quality |
Municipal Tap Water |
| Removes |
Sediment, Rust, Chlorine, and Other Impurities |
| Water Flow |
4T/H |
| Item Weight |
1.08 KG |
Advanced Features
- Ultra-high water flow with 316L food-grade stainless steel precision mesh membrane
- Patented water-driven self-cleaning technology removes impurities without disassembly or manual cleaning
- Core components made from specially selected imported materials with strong pressure resistance and reliable safety
- Explosion-proof transparent housing for visible filtration performance and intuitive backwash monitoring
- Thorough cleaning and drainage: forward rotation enables manual scraping, reverse rotation activates powerful water-driven flushing
Applications
Frequently Asked Questions
What kinds of contaminants can the water filters eliminate?
Our water filters effectively remove impurities like sediment, unpleasant tastes and odors, hardness, and bacteria to improve water quality.

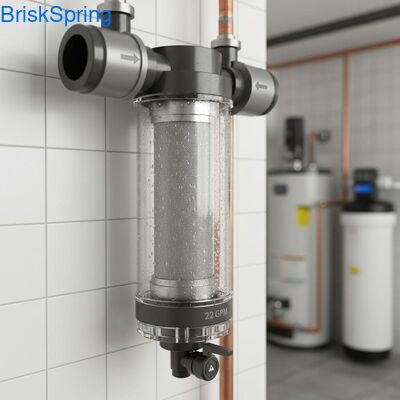

Are there any photos of installations by users?
Yes, here is feedback with installation pictures from our customers in the US.
Where is this product manufactured?
The product is made in our own factory located near Shanghai.
What filtering technology does this product utilize?
This is our 10th generation filter featuring water-driven technology to eliminate sediment. Unlike traditional manual scraping filters, it uses hydraulic drive to instantly clean the filter screen by scraping off impurities, preventing clogging caused by infrequent maintenance.
What kind of performance testing has the product undergone?
It has passed:
- 200,000 cycles of 12kg water hammer testing
- Burst pressure test up to 64kg
- Extreme cold temperature test down to -30°C
These tests ensure the filter bottle is frost-resistant and explosion-proof, guaranteeing safe operation without risk of bursting.
How can I contact you for a quote?
Please send an email to rina@briskspring.com or message us on WhatsApp at +86 19857451383.
For more information or inquiries, please contact our sales team.
