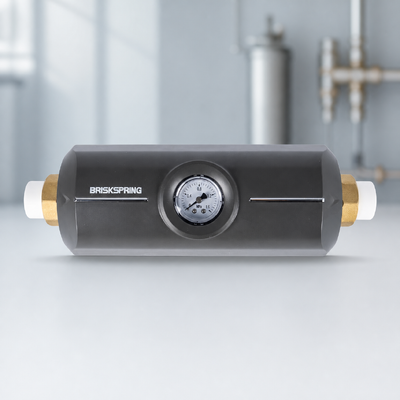

Y1 Whole-House Physical Water Descaler with Integrated Pressure Gauge for Non-Salt Scale Control
Product Overview
The BriskSpring Y1 is a whole-house physical water descaler designed for municipal water and centralized water-supply systems. Its horizontal inline design features an integrated pressure gauge for convenient on-site pressure observation.
Using a non-salt, non-ion-exchange physical scale-control approach, the Y1 is intended for projects seeking a scale-management solution without a resin regeneration cycle. It is not a conventional salt-based water softener and does not remove calcium or magnesium from water.
Product Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Product Name |
Y1 Whole House Physical Water Descaler with Pressure Gauge |
| Reference Model |
RSO-Y1-BS |
| Product Type |
Whole-House Physical Water Descaler |
| Working Principle |
Pure Physical Ion Polarization |
| Applicable Water |
Municipal Water |
| Installation Type |
Horizontal Inline Installation |
| Pressure Gauge |
Integrated Pressure Gauge |
| Connector Size |
3/4 in (F1/2 in, 3/4 in, 1 in) |
| Connector Material |
H59-1 Copper |
| Applicable Water Pressure |
0.15–1 MPa (21.76–145.03 PSI) |
| Flow Rate |
≤5 T/H (≤22 GPM) |
| Applicable Water Temperature |
0–99°C (32–210.2°F) |
| Product Dimensions |
270 × 130 × 100 mm (10.6 × 5.1 × 3.9 in) |
| Item Weight |
1.341 kg |
| Package Dimensions |
310 × 190 × 160 mm (12.2 × 7.5 × 6.3 in) |
| Package Weight |
2.170 kg |

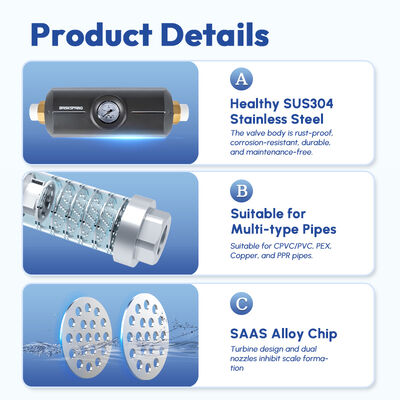

| Internal Scale-Control Components |
Turbine Chip, Driving Turbine and Turbulator |
| Gauge Assembly |
Pressure Gauge, Gasket, Cover and Frame |
| Exterior Design |
Gray horizontal body with decorative bars |
Working Principle
Water flows through the Y1’s inline chamber and passes through its internal SAAS/IPSE scale-control components. The product is designed to use a physical ion-polarization approach to support scale management in the water system.
The actual performance depends on the confirmed model, water hardness, mineral composition, temperature, flow rate, installation position and operating conditions. For applications that require a reduction in water hardness, a conventional ion-exchange softener should be considered instead.
Key Advantages
-
Whole-house inline form factor for residential and light commercial water-system projects.
-

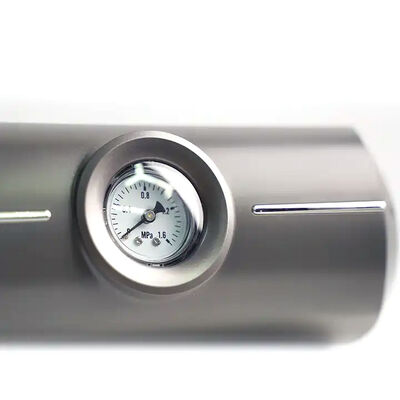

Integrated pressure gauge for convenient system-pressure observation.
-
Non-salt and non-ion-exchange physical scale-control positioning.
-
No resin regeneration cycle required.
-
Suitable for use as part of a broader whole-house water-treatment layout.
-
Can be evaluated for installation after a pre-filter, helping reduce the effect of suspended sediment on the internal scale-control components.
-
Gray horizontal appearance suitable for modern utility-room or plumbing installations.
-
OEM support for branding, exterior appearance and packaging, subject to technical evaluation.
-
Final connection, performance and compliance documentation can be matched to the confirmed destination market.
Applications
The Y1 can be evaluated for municipal-water applications such as:
-
Whole-house incoming water lines
-
Residential plumbing systems
-
Hot-water supply lines
-
Water-heater upstream protection projects
-
Apartment and villa water-system upgrades
-
Light commercial water-use systems
For best system design, confirm water source, hardness, TDS, temperature, peak flow, pipe size, pressure, installation space and destination-market requirements before selection.
Why Choose BriskSpring
BriskSpring provides water-treatment product solutions covering whole-house pre-filtration, physical scale control, point-of-use protection and water-leak management.
For OEM and project customers, we can discuss product configuration, branding, product appearance, packaging and applicable technical documents after the exact model and target market are confirmed.
FAQ
Is the Y1 a salt-based water softener?
No. The Y1 is positioned as a non-salt, non-ion-exchange physical water descaler. It does not use a resin regeneration process.
Can the Y1 reduce water hardness?
No hardness-reduction claim should be made for this physical scale-control product. If hardness reduction is required, please select an ion-exchange water-softening solution.
Where should the Y1 be installed?
It can be evaluated for installation on an incoming water line, preferably after a suitable pre-filter. The final position depends on water quality, plumbing layout, flow rate and local installation requirements.
Does the product include a pressure gauge?
Yes. The product image and current configuration show an integrated pressure gauge for pressure observation.
What connection size and flow rate are available?
The final connection, flow-rate rating and installation requirements must be confirmed with the factory for the exact RSQ-Y1G-BS configuration.
Is the product certified for my market?
Applicable current documents must be checked against the confirmed model, production version and destination market before order confirmation.
