G400 DN40 Flanged Commercial Physical Water Descaler
The BriskSpring G400 is a commercial physical water descaler designed for municipal-water systems. Featuring a DN40 flanged connection, a 150 mm flange diameter, and a maximum documented flow rate of 9 T/h, it is suitable for in-line integration in commercial water pipelines.
The G400 uses SAAS/IPSE multi-alloy chip technology and a pure physical ion-polarization treatment route. It is intended for scale-control evaluation in commercial water-heating and related water-system applications.
Product Overview
Scale buildup can affect water-heating equipment, heat exchangers, commercial water tanks, and pipeline systems. The G400 is designed as a compact in-line physical scale-control device for projects using municipal water.

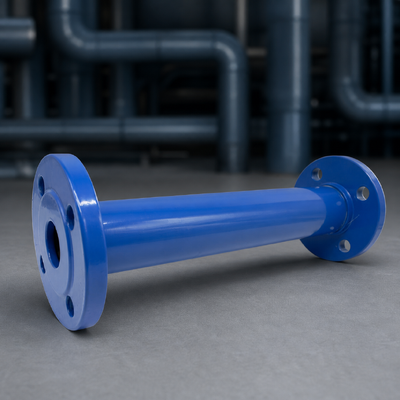

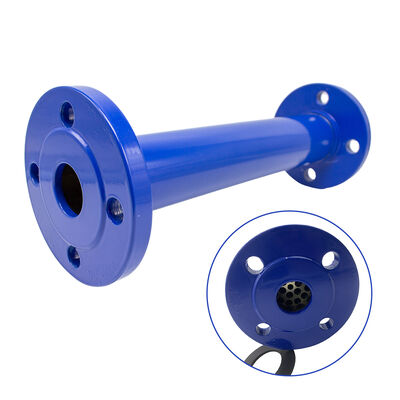

Its blue flanged cylindrical body is installed directly in the pipeline. Water passes through the unit in the indicated flow direction and interacts with the internal SAAS/IPSE multi-alloy chip structure.
This product is a physical water descaler. It does not use salt regeneration or ion-exchange resin, and it should not be presented as a conventional water softener that removes calcium and magnesium hardness.
Product Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
G400 |
| Product Type |
Commercial Physical Water Descaler |
| Treatment Method |
Pure Physical Ion Polarization |
| Core Technology |
SAAS/IPSE Multi-Alloy Chip Design |
| Connection Type |
DN40 Flange |
| Flange Diameter |
150 mm |
| Flange Thickness |
15 mm |
| Applicable Water |
Municipal Water |
| Applicable Water Pressure |
0.15–1 MPa |
| Applicable Water Temperature |
0–99°C |
| Maximum Flow Rate |
≤9 T/h (39.6 GPM) |
| Product Dimensions |
400 * 70 mm |
| Net Weight |
6.2 kg |
| Package Weight |
9.4 kg |
| Seal Quantity |
2 pcs |
| Seal Weight |
24 g |
| Flange Seal Dimension |
49 * 85 * 3.2 mm |
| Installation |
In-line installation following the water-flow direction |
Working Principle

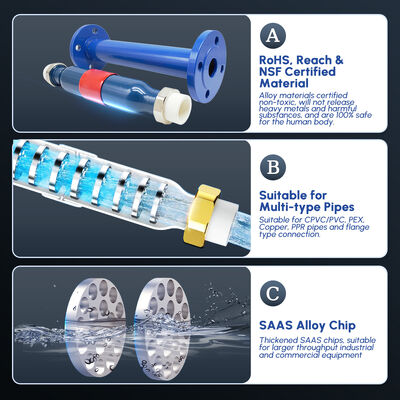

The G400 works through a pure physical ion-polarization approach. Its internal SAAS/IPSE multi-alloy chip structure is designed to create a physical treatment zone as water flows through the device.

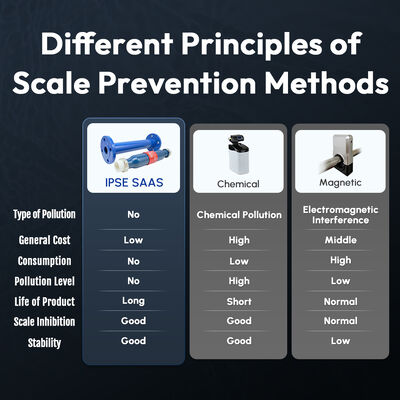

Unlike salt-based or ion-exchange water-softening systems, the G400 does not depend on resin regeneration, salt consumption, or routine chemical dosing. It is a physical scale-control solution for project evaluation, rather than a device that removes dissolved hardness minerals.
For the best selection result, the water source, water quality, flow demand, operating pressure, water temperature, installation point, and pipeline conditions should be reviewed before installation.
Key Advantages
-
DN40 flanged connection for commercial pipeline installation
-
150 mm flange diameter with 15 mm flange thickness
-
Maximum documented flow rate up to 9 T/h
-
Designed for municipal-water applications
-
Pure physical ion-polarization treatment method
-
SAAS/IPSE multi-alloy chip structure
-
No ion-exchange resin required
-
No salt regeneration required
-
In-line pipeline design with defined water-flow direction
-
Compact 400 * 70 mm product size
-
Suitable for commercial water-heating and related water-system projects
Application Scenarios
The G400 can be evaluated for commercial and industrial water systems where scale formation may affect equipment operation and maintenance planning.
Typical application examples include:
-
Commercial water-heating equipment
-
Commercial boilers
-
Heat-exchange systems
-
Air-energy and heat-pump water systems
-
Commercial water tanks
-
Injection-molding equipment water systems
-
Auxiliary pipelines in commercial water systems
Why Choose BriskSpring
BriskSpring provides water-treatment product solutions for household, commercial, and industrial applications. For commercial projects, we focus on matching the product configuration to the actual operating conditions.
Our project-selection process considers:
-
Water source and water-quality information
-
Flow rate and peak water demand
-
Operating pressure and water temperature
-
Pipe size and flange connection requirements
-
Installation space and pipeline layout
-
Existing pre-filtration or water-treatment equipment
-
Target-market documentation requirements
-
OEM branding and packaging needs
This helps ensure that the selected physical water descaler is suitable for the intended system.
FAQ
Is the G400 a conventional water softener?
No. The G400 is a physical water descaler based on ion-polarization technology. It does not use ion-exchange resin or salt regeneration.
Does the G400 remove calcium and magnesium from water?
No. The G400 should not be promoted as removing hardness minerals or producing softened water.
What type of water is the G400 designed for?
The documented version is designed for municipal water applications.
What are the documented pressure and temperature ranges?
The G400 is documented for water pressure from 0.15 to 1 MPa and water temperature from 0 to 99°C.
Where should the G400 be installed?
It should be installed in-line according to the marked water-flow direction. The supplied structure drawing shows installation before water-heating equipment.
Can the G400 be used in every commercial water system?
The final selection should consider water quality, flow demand, pressure, temperature, pipework, and equipment configuration.
