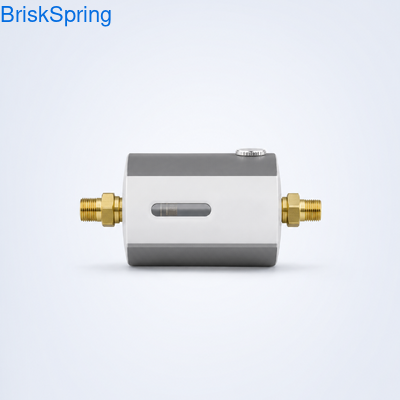

HZ-N Whole House Sediment Pre-Filter with 40 μm Filtration Precision and 7 t/h Flow Rate
Product Overview
The BRISKSPRING HZ-N Whole House Sediment Pre-Filter is a compact horizontal pre-filtration solution for municipal tap-water systems. Installed at the main water inlet, it helps intercept visible sediment, rust and suspended particles before water reaches household plumbing fixtures and appliances.
HZ-N combines a 40 μm filtration precision with a rated flow of 7 t/h. Its horizontal in-line format and 1 inch male connections make it suitable for residential water-entry installations where reliable routine pre-filtration is required. This product is designed for sediment pre-filtration and does not replace an RO system, a sterilizer or an ion-exchange water softener.

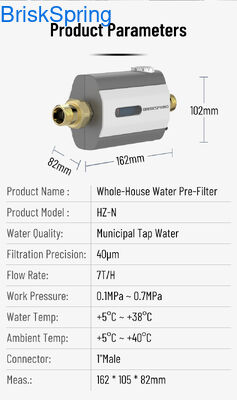

Product Specifications
| Specification |
Value |
| Brand |
BRISKSPRING |
| Model |
HZ-N |
| Product Type |
Whole House Water Pre-Filter |
| Applicable Water |
Municipal Tap Water |
| Filtration Precision |
40 μm |
| Flow Rate |
7 t/h |
| Working Pressure |
0.1–0.7 MPa |
| Applicable Water Temperature |
+5°C to +38°C |
| Ambient Temperature |
+5°C to +40°C |
| Connection |
1 Inch Male |
| Installation Type |
Horizontal In-Line Installation |
| Product Dimensions |
162 × 105 × 82 mm |
| Color |
White and Gray |
Working Principle
Municipal water enters the HZ-N through the inlet connection and passes through the internal filtration structure. The filter is designed to retain visible sediment and suspended particles before water continues into the home’s downstream plumbing system.
Routine flushing helps carry away collected particles. Install the unit in the indicated water-flow direction and ensure access to a suitable drainage point for maintenance.
Key Advantages
-
40 μm filtration precision for visible particle pre-filtration in municipal tap-water systems.
-
7 t/h rated flow for whole-house water-entry applications.
-
Horizontal in-line form supports compact main-inlet installation.
-
1 inch male connections for compatible plumbing layouts.
-
White-and-gray exterior offers a clean, modern appearance.
-
Operates within a defined 0.1–0.7 MPa pressure range.
-
Flushable structure supports routine maintenance based on local water conditions.
Application Scenarios
-
Residential main water-inlet installations
-
Apartments, villas and homes supplied by municipal tap water
-
Kitchen, bathroom and laundry plumbing pre-filtration
-
Upstream protection before compatible household water-treatment equipment
-
Projects requiring a compact horizontal sediment pre-filter
Why Choose BRISKSPRING
BRISKSPRING offers water-treatment solutions for residential and project applications. We can evaluate OEM branding, packaging, connection requirements and applicable documents according to the confirmed HZ-N configuration and destination market.
FAQ
What water source is HZ-N designed for?
HZ-N is designed for municipal tap water. Please provide water-quality information before using it with well water, high-turbidity water or another non-standard source.
What does a 40 μm pre-filter do?
A 40 μm pre-filter is intended to help retain visible sediment, rust and suspended particles. It is not designed as a complete purification solution for dissolved contaminants.
How should HZ-N be maintained?
Flush the unit at least monthly as a general guideline. The actual interval should be adjusted according to visible sediment and local source-water conditions.
Does HZ-N use a 1 inch connection?
Yes. The controlled product data lists a 1 inch male connection. Confirm the exact local thread standard before installation or purchase.
Can HZ-N be used with other whole-house equipment?
It can be evaluated as an upstream pre-filtration component. Confirm flow requirement, pipe size, water pressure and downstream equipment requirements before selecting a complete system.
