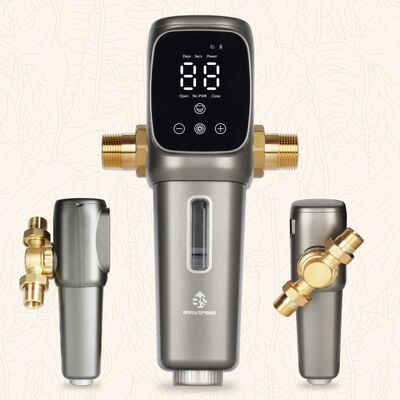

AT-30G-BS Automatic Whole House Sediment Pre-Filter with 40 Micron Filtration Accuracy and Timed Self-Flushing SUS316L Stainless Steel Mesh
Product Overview
The BriskSpring AT-30G-BS is an automatic whole-house sediment pre-filter designed for municipal tap water systems. Installed on the main inlet line, it helps reduce visible sediment, rust and suspended particles before water reaches household plumbing and connected equipment.
The product combines a reusable SUS316L stainless steel mesh, H59-1 brass connector options and a battery-powered control panel for timed flushing. It is intended as a pre-treatment product for municipal water, not as an RO system, sterilizer or solution for dissolved contaminants.
Product Specifications
| Item |
Specification |
| Model |
AT-30G-BS |
| Product Type |
Automatic Whole House Sediment Pre-Filter |
| Applicable Water |
Municipal Tap Water |
| Filtration Accuracy |
40 Micron |
| Rated Flow |
6 m³/h |
| Working Pressure |
0.15–1 MPa |
| Operating Ambient Temperature |
+1°C to +40°C |
| Connector Options |
3/4 inch or 1 inch |
| Connector Material |
H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Flushing Mode |
Manual or automatic timed flushing |
| Product Dimensions |
143 × 162 × 310 mm |
| Net Weight |
1.56 kg |
| Gross Weight |
2.21 kg |
| Included Components |
Wrench, manual, sewer drain connector and drain pipe |
How It Works

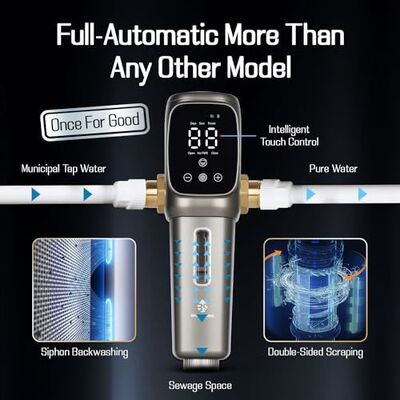

Water enters the pre-filter through the selected main-line connection. The stainless steel mesh intercepts larger visible particles such as sand, rust and suspended debris. The collected sediment can then be discharged through the drain outlet during manual flushing or according to the selected automatic flushing schedule.

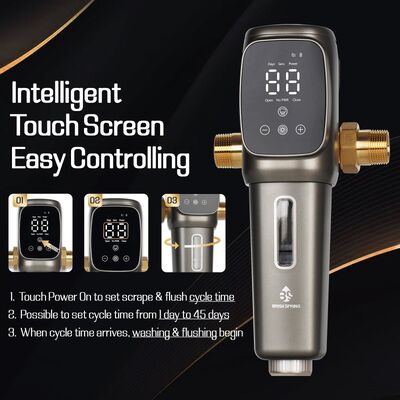

The manual lists adjustable automatic-flush settings from 1 to 45 days and a flushing duration from 5 to 95 seconds. Final settings should be selected according to local water conditions, sediment level and drainage capability.
Key Advantages
Automatic Timed Flushing

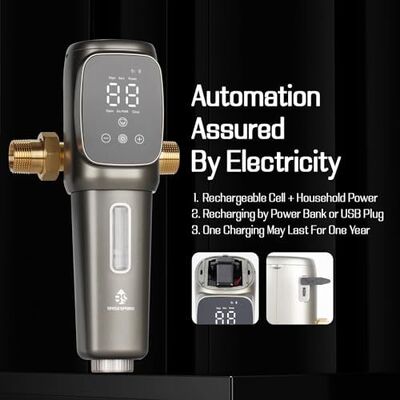

The battery-powered control panel supports scheduled flushing, helping users manage routine sediment discharge without relying only on manual operation.
Reusable SUS316L Mesh
The product uses a reusable SUS316L stainless steel filter mesh with a listed filtration accuracy of 40 microns for visible sediment pre-treatment.
Whole-House Installation
With 3/4 inch and 1 inch connector options, the AT-30G-BS can be evaluated for installation on compatible household main water lines.

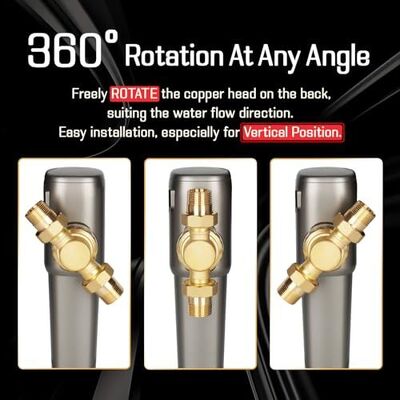

Brass Connection Structure
H59-1 brass connectors provide a robust connection option for the confirmed plumbing configuration.
Manual Backup Flushing
In addition to timed flushing, the product can be manually flushed when source-water conditions require additional maintenance.
Applications
-
Whole-house municipal water inlet filtration
-
Residential plumbing pre-treatment
-
Water-heater and appliance inlet protection projects
-
Bathroom and kitchen water-line pre-filtration
-
Plumbing distributors and private-label water-treatment programs
Installation Notes
Install the product on the main water inlet according to the confirmed flow direction and local plumbing requirements. A suitable drain point is required for flushing discharge. Before installation, confirm pipe size, water pressure, installation space, drainage conditions and local compliance requirements.
This product is designed for municipal tap water. Water from wells, high-turbidity sources, seawater, corrosive water or industrial process systems requires separate technical evaluation.
Why Choose BriskSpring
BriskSpring supports water-treatment product development for OEM and private-label projects. We can evaluate branding, packaging, language versions and supporting documentation according to the confirmed model, destination market and order requirement.
For projects requiring compliance documents, we will check the applicable current documents with the factory after the exact model, configuration and destination market are confirmed.
FAQ
1. What does this pre-filter remove?
It is designed to reduce visible sediment, rust, sand and suspended particles in municipal tap water. It is not an RO system and does not replace dedicated purification or disinfection equipment.
2. Does the filter require replacement cartridges?
The AT-30G-BS uses a reusable stainless steel mesh. Maintenance requirements depend on source-water conditions and flushing frequency.
3. How often should the filter flush?
The manual lists adjustable intervals from 1 to 45 days and flushing durations from 5 to 95 seconds. Select the final setting according to the sediment level and drain conditions.
4. Can it be used for well water?
This listing is intended for municipal tap water. Well water or highly turbid water should be evaluated separately based on water-quality data.
5. What connection sizes are available?
The listed connection options are 3/4 inch and 1 inch. Confirm the final thread standard and pipe arrangement before ordering.
6. Is a drain required?
Yes. The installation location needs a suitable drain connection to receive discharged water during flushing.
7. Is the product certified?
Applicable documents should be checked for the confirmed model, configuration and destination market. This page does not make a certification claim.
