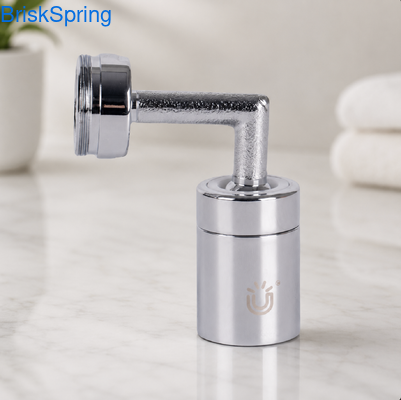

Extended Offset 720 Degree Rotatable Micro Nano Bubble Faucet Aerator with M22 M24 Connection
Product Overview
The BriskSpring Extended Offset Faucet Aerator is a rotatable micro nano bubble faucet accessory designed for compatible kitchen and bathroom taps using municipal tap water.
Compared with a conventional straight faucet aerator, this version features an extended offset elbow structure. The outlet is positioned farther away from the original faucet connection, providing additional operating clearance for rinsing cookware, washing food and cleaning different areas of the sink.
The product uses gas-liquid cutting technology to introduce air into the water flow and produce a fine bubble-rich outlet stream. Its internal structure can be equipped with an H59-1 brass connection component, a SUS304 stainless steel valve core and reusable multi-layer stainless steel filtering elements.
This product is intended as a faucet outlet accessory with basic visible-particle filtration. It is not an RO system, sterilizer or complete drinking-water purification device.
Product Specifications
| Item |
Specification |
| Model |
To Be Confirmed |
| Product Type |
Extended Offset Micro Nano Bubble Faucet Aerator |
| Exterior Structure |
Extended L-Shaped Offset Elbow |
| Applicable Water |
Municipal Tap Water |
| Faucet Connection |
M22 / M24 |
| Connection Material |
H59-1 Brass |
| Valve Core Material |
SUS304 Stainless Steel |
| Filter Screen Gasket |
Two-layer stainless steel structure |
| Listed Filtration Rating |
380 Micron |
| Internal Filter Structure |
Six-layer stainless steel mesh |
| Working Principle |
Gas-Liquid Cutting Technology |
| Listed Bubble Concentration |
1.09 * 10⁸ ± 1.65 * 10⁷ particles/mL |
| Working Pressure |
0.15–0.6 MPa |
| Working Pressure in PSI |
Approximately 22–87 PSI |
| Operating Water Temperature |
+5°C to +70°C |
| Exterior Finish |
Polished Chrome-Look Finish |
| Product Dimensions |
To Be Confirmed |
| Net Weight |
To Be Confirmed |
| Package Dimensions |
To Be Confirmed |
| Gross Weight |
To Be Confirmed |
How It Works
The aerator is installed at a compatible M22 or M24 faucet outlet.
When the faucet is opened, water enters the internal valve structure and passes through the gas-liquid cutting channels. Air is introduced into the flowing water, producing a fine bubble-rich stream at the outlet.
The water also passes through the stainless steel screen gasket and multi-layer mesh structure. These components help intercept relatively large visible particles that may be present in municipal water pipelines.
The extended offset elbow moves the outlet away from the original faucet connection. This creates additional clearance between the faucet body and the water outlet, making it easier to rinse larger items or reach different areas of the sink.
The actual outlet pattern, bubble appearance and water-flow performance may vary according to inlet pressure, water temperature and faucet configuration.
Key Advantages
Extended Offset Outlet
The elongated elbow structure increases the distance between the faucet connection and the water outlet, providing more space for rinsing cookware, containers and other household items.
Flexible Water Direction
The rotatable joint allows users to reposition the water stream according to the sink layout and washing requirement.
High-Density Bubble Generation
The internal gas-liquid cutting structure mixes air with water to create a fine bubble-rich outlet stream without requiring an external pump.
Multi-Layer Stainless Steel Filtration
The internal structure includes a two-layer stainless steel screen gasket and a six-layer stainless steel mesh for basic interception of relatively large visible particles.
M22 and M24 Compatibility
The product can be evaluated for faucets using common M22 or M24 outlet connections. Final thread size and thread direction must be confirmed before ordering.
Reusable Internal Components
The accessible screen and mesh components can be inspected, cleaned and reused according to source-water conditions.
Applications
- Kitchen sink faucet upgrading
- Deep sink and large basin applications
- Cookware and container rinsing
- Dish and kitchen utensil washing
- Fruit and vegetable surface rinsing
- Bathroom basin faucet applications
- Residential faucet accessory projects
- Plumbing distributors and OEM programs
Installation Notes
Confirm the faucet outlet diameter, thread direction and thread type before installation. M22 and M24 faucets may use internal or external threads, and some faucet models may require an additional adapter.
The extended structure requires sufficient surrounding space. Before installation, check the distance between the faucet outlet, sink edge, wall and nearby objects.
Position the sealing gasket correctly and tighten the connector securely. Avoid excessive force, as overtightening may damage the faucet thread or sealing component.
After installation, open the faucet slowly and inspect the connection for leakage. Adjust the outlet direction only within the product’s normal rotation range.
If the water flow becomes restricted, remove and rinse the accessible stainless steel filter components.
This product is intended for municipal tap water within the listed pressure and temperature ranges. Well water, high-turbidity water, seawater, corrosive liquids and industrial process water require separate technical evaluation.
Why Choose BriskSpring
BriskSpring supports the development of faucet aerators, micro nano bubble accessories and household water pre-treatment products for wholesale, OEM and private-label projects.
Available project support can include logo customization, exterior finish selection, connector configuration, packaging design, multilingual instructions and model-specific technical documentation.
Performance claims, compliance documents and market-specific certification requirements should be checked after the exact product model, internal configuration and destination market are confirmed.
FAQ
1. What is the advantage of the extended offset structure?
The extended elbow moves the outlet farther away from the original faucet connection, creating additional space for rinsing cookware, containers and different areas of the sink.
2. Is it suitable for every faucet?
No. The product is intended for compatible M22 or M24 faucet outlets. Thread diameter, thread direction and adapter requirements should be confirmed before ordering.
3. Does it generate micro nano bubbles?
The internal gas-liquid cutting structure is designed to introduce air into the water flow and produce a fine bubble-rich stream.
4. What does the filter structure remove?
The stainless steel screen and mesh help intercept relatively large visible particles. The product is not designed to remove dissolved salts, heavy metals, microorganisms or dissolved chemical contaminants.
5. Is it a drinking-water purifier?
No. It is a faucet aerator with a reusable coarse filtration structure and does not replace a certified drinking-water purification or disinfection system.
6. Can the filter be cleaned?
Yes. Accessible stainless steel filtering components can be removed and rinsed according to actual pipeline and water-quality conditions.
7. Does it require electricity?
No external electricity is required for normal bubble generation. The water-and-air mixing process is driven by inlet water flow and the internal channel structure.
8. Can it be used with hot water?
The listed operating water temperature is from +5°C to +70°C. Do not operate the product above the confirmed temperature limit.
9. Is the product certified?
Applicable documents must be checked for the confirmed model, material configuration and destination market. This page does not make a certification claim.
