High Flow 16L/Min Inline Shower Water Filter for Chlorine Reduction with Replaceable Cartridge
Product Overview
The BriskSpring M2-A Shower Water Purifier offers a convenient way to upgrade an existing shower system with composite water filtration and a visible maintenance reminder.
Installed directly in the shower water line, the purifier uses silver-carrying activated carbon, MSAP and KDF filter media to help reduce chlorine, selected heavy-metal ions and scale-related impurities commonly associated with municipal tap water.
The industrial-style housing is made from BPA-free ABS plastic and incorporates a decorative textured upper cover. A 316L food-grade stainless steel mesh provides additional particle interception, while the standard 1/2-inch connection makes the product suitable for a wide range of compatible shower hoses and shower-head systems.
The purifier is available in different exterior color combinations and can be evaluated for branding, packaging and filter customization for distributors, bathroom brands and private-label projects.
Product Specifications
| Parameter |
Details |
| Product Model |
M2-A |
| Product Name |
Shower Water Purifier |
| Installation Type |
Inline Shower Filter |
| Water Source |
Municipal Tap Water |
| Thread Size |
1/2 Inch |
| Working Pressure |
0.1–0.75 MPa |
| Maximum Listed Flow |
16 L/min / 4.23 GPM |
| Water Temperature Range |
+1°C to +50°C |
| Nominal Filtration Rating |
100–120 Microns |
| Main Filter Media |
Silver-Carrying Activated Carbon, MSAP and KDF |
| Pre-Filter Component |
316L Stainless Steel Mesh |
| Housing Material |
BPA-Free ABS |
| Recommended Replacement |
6–10 Months |
| Listed Treatment Capacity |
Up to Approximately 20 Tons |
| Reminder Function |
Manual Month Scale Ring |
| Available Appearance |
White / Metallic Black and Other Evaluated Finishes |
| Suitable Market |
Residential, Hospitality, Retail and OEM Projects |
Product Description
Daily shower water may contain residual disinfectant, suspended particles, pipe-related deposits and scale-forming minerals. The M2-A is designed as a compact shower-line treatment product that can be added to an existing bathroom without changing the complete faucet or shower system.

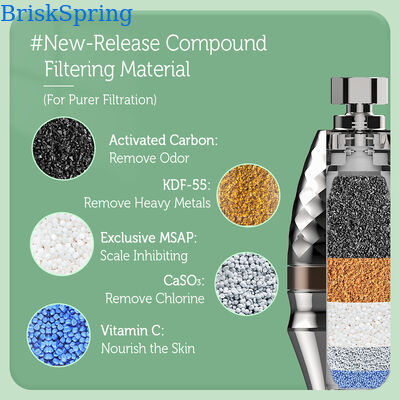

Water first passes through the stainless steel mesh, which helps intercept relatively large visible particles. It then enters the composite filter assembly containing silver-carrying activated carbon, MSAP and KDF media.
The activated carbon helps treat chlorine-related water characteristics, while the additional media support selected heavy-metal reduction and scale inhibition. This multi-stage structure provides a more complete shower-water pre-treatment solution than a simple mesh screen alone.
The product maintains a listed flow rate of up to 16 L/min and can be used within a water-pressure range of 0.1–0.75 MPa. Its compact structure can be installed near the shower hose connection or at another compatible 1/2-inch position.
Main Selling Points
Simple Shower-System Upgrade
The inline design allows the purifier to be added to a compatible existing shower connection without replacing the complete shower faucet or shower head.
Multiple Filter Materials in One Cartridge
Activated carbon, MSAP and KDF media work together to support chlorine treatment, selected heavy-metal reduction and scale-related water conditioning.
Suitable for Everyday Shower Flow
The listed flow rate of 16 L/min supports normal residential shower use when the product is installed under the specified pressure and water conditions.
Replaceable Internal Filter Assembly
The housing can be opened so the internal filter assembly can be replaced according to usage time and local water conditions.
Month Scale Maintenance Reminder
Users can rotate the scale ring to indicate the installation or replacement month, helping avoid forgotten filter maintenance.
Compact Decorative Appearance
The faceted upper housing and metallic accent ring give the purifier a more refined appearance than a conventional cylindrical shower cartridge.
Flexible Installation Positions
Depending on the shower configuration, the purifier can be installed at the shower hose inlet or another suitable inline connection.
Recommended Uses
- Homes with noticeable municipal-water chlorine odor
- Apartments with older plumbing systems
- Bathrooms in hard-water regions
- Hotel guest-room shower systems
- Rental properties and serviced apartments
- Bathroom accessory retail programs
- Online shower-filter product ranges
- OEM and branded water-treatment projects
Installation Guidance
Before installation, turn off the water supply and confirm that the existing connection is 1/2 inch.
Remove the shower hose or shower head from the selected installation position. Install the washer, connector and O-ring in the correct sequence according to the product structure.
Tighten the purifier by hand and avoid excessive tool force. Reconnect the shower component, turn on the water slowly and check the threaded joints for leakage.
Flush the new filter with water before normal use to remove possible carbon dust generated during transportation.
The product should be installed in the confirmed flow direction and used only within the listed pressure and temperature ranges.
Replacement Guidance
The recommended replacement period is 6–10 months or after approximately 20 tons of water treatment.
Replacement frequency should be adjusted according to:
- Number of household users
- Daily shower duration
- Source-water chlorine level
- Water hardness
- Sediment level
- Actual flow reduction
The listed service period is a reference and not a guaranteed lifetime under every water condition.
OEM and Private-Label Services
BriskSpring can evaluate customized solutions for bathroom-product distributors, shower brands and water-treatment suppliers.
Available project support may include:
- Custom logo and color combination
- Retail box and instruction design
- Multilingual packaging
- Alternative filter-media configurations
- Replacement filter packaging
- Barcode and label customization
- Product photography and technical documentation
All market-specific claims and compliance statements should be reviewed against the final product configuration and available test documents.
FAQ
1. Can the purifier be installed on a handheld shower?
Yes, it can be evaluated for installation between a compatible water outlet and shower hose using a 1/2-inch connection.
2. Can it be installed directly under a shower head?
It may be installed at a compatible shower-head connection if sufficient space and matching threads are available.
3. Does it soften hard water?
The product includes media intended to support scale inhibition, but it is not a complete ion-exchange water softener.
4. Does it kill bacteria?
No sterilization claim is made. The product is a composite shower-water filter and should not be described as a disinfection device.
5. Is the housing BPA-free?
The single-page specification lists the ABS housing as BPA-free.
6. What is the filtration accuracy?
The listed filtration precision is 100–120 microns.
7. Can the filter cartridge be customized?
Filter-media configuration may be evaluated for OEM projects after the required water conditions, performance target and order quantity are confirmed.
