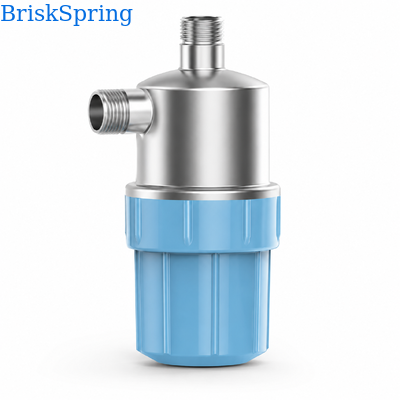

BriskSpring T5-M7-BS Commercial Water Scale Inhibitor with 40 Micron SUS316 Mesh, Replaceable Cartridge, and 30 L/min Flow Rate
he BriskSpring T5-M7-BS is a dual-function filtration and scale-inhibition unit developed for compatible commercial water dispensers supplied with municipal tap water. It combines a replaceable SUS316 stainless steel mesh cartridge with MSAP scale-inhibition media to support upstream impurity filtration and reduce scale-related deposits inside connected dispensing equipment.
The 40-micron filtration structure helps intercept visible sediment, rust, sand and suspended particles before water enters the dispenser. The MSAP media provides scale-control support but does not function as a conventional ion-exchange water softener and does not remove calcium, magnesium or dissolved salts from the water.
With a listed flow rate of up to 30 L/min and a 1/2-inch male/female connection configuration, the T5-M7-BS can be evaluated for commercial drinking-water dispensers, beverage equipment and other compatible point-of-entry appliance applications.
Product Specifications
| Item |
Specification |
| Model |
T5-M7-BS |
| Product Type |
Commercial Water Dispenser Filter and Scale Inhibitor |
| Applicable Water |
Municipal Tap Water |
| Filtration Accuracy |
40 Micron |
| Maximum Flow Rate |
≤30 L/min / 7.95 GPM |
| Applicable Water Pressure |
Up to 0.75 MPa / 108.75 PSI |
| Applicable Water Temperature |
+1°C to +60°C / 33.8°F to 140°F |
| Connection |
1/2 Inch Male and Female |
| Filter Mesh Material |
SUS316 Stainless Steel |
| Scale-Inhibition Media |
Food-Grade MSAP as Listed |
| Cartridge Design |
Replaceable Filter Cartridge |
| Product Weight |
0.28 kg |
| Cartridge Weight |
0.086 kg |
| Product Dimensions |
To Be Confirmed Before Ordering |
| Main Function |
Sediment Filtration and Scale-Inhibition Support |
How It Works

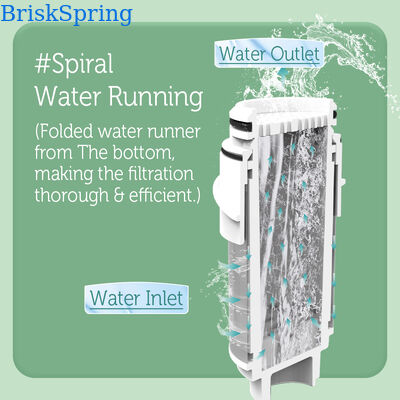

Municipal tap water enters the housing through the confirmed 1/2-inch connection. The SUS316 stainless steel mesh helps intercept visible sediment and suspended particles down to the listed 40-micron filtration level.
Water then passes through the cartridge containing MSAP scale-inhibition media. The media is designed to support scale control in compatible commercial water-dispenser systems. Treated water exits through the opposite connection and continues to the downstream equipment.
The unit does not reduce TDS and should not be promoted as an RO purifier, disinfectant system or salt-based water softener.
Key Advantages
Dual Filtration and Scale-Control Function
One compact unit combines coarse sediment filtration with scale-inhibition support, helping simplify upstream protection for compatible commercial water dispensers.
Replaceable SUS316 Cartridge
The internal cartridge uses a SUS316 stainless steel mesh structure. The replaceable design supports scheduled maintenance without replacing the complete outer housing.
40-Micron Sediment Filtration
The mesh helps reduce visible rust, sand, sediment and suspended debris that may enter downstream water-dispenser components.
Up to 30 L/min Flow
The listed maximum flow rate of 30 L/min supports evaluation for commercial dispensing applications requiring a practical water-supply capacity.
1/2-Inch Connection Configuration
The male/female 1/2-inch connection design can be assessed for compatible dispenser inlet arrangements. Final thread type and installation direction must be confirmed before ordering.
Compact Appliance Protection
The product is designed for installation before compatible commercial water dispensers, helping reduce particulate loading and scale-related deposits in downstream water pathways.
Applications
- Commercial drinking-water dispensers
- Office and workplace water stations
- Restaurant and café water equipment
- Beverage preparation systems
- Hotel and hospitality water dispensers
- School and institutional drinking-water equipment
- Replacement and private-label filtration programs
Installation Notes
Install the product upstream of the commercial water dispenser according to the confirmed water-flow direction and local plumbing requirements.
Before installation, confirm:
- 1/2-inch thread standard and male/female arrangement
- Inlet water pressure
- Water temperature
- Available installation space
- Cartridge-access clearance
- Municipal-water quality
- Downstream equipment flow requirement
Flush the unit before normal operation according to the confirmed instruction manual. Cartridge inspection and replacement frequency depend on local water quality, water consumption and scale conditions.
Why Choose BriskSpring
BriskSpring supports water-treatment products for distributors, commercial equipment suppliers and private-label programs. Available project support can include model matching, logo customization, packaging development, language versions and technical documentation according to the confirmed order.
Any food-contact, performance or compliance documentation should be checked for the exact model, cartridge configuration and destination market before commercial use.
FAQ
1. What does the filter remove?
The 40-micron SUS316 mesh is designed to help reduce visible sediment, rust, sand and suspended particles from municipal tap water.
2. Does it soften hard water?
No. The MSAP media provides scale-inhibition support, but the product does not remove calcium and magnesium ions like a salt-based water softener.
3. Does it reduce TDS?
No. This product does not reduce dissolved salts or TDS.
4. Is the cartridge replaceable?
Yes. The single-page information identifies a replaceable SUS316 mesh cartridge structure.
5. How often should the cartridge be replaced?
A fixed replacement interval is not listed. The maintenance period depends on water quality, water consumption and operating conditions.
6. What connection size does it use?
The listed connection configuration is 1/2-inch male and female. The exact thread standard should be confirmed before ordering.
7. Can it be used with well water?
This listing is intended for municipal tap water. Well water requires separate evaluation based on sediment, hardness and water-quality data.
