BriskSpring T5-M3-BS 1/2 Inch Water Scale Inhibitor with Replaceable Cartridge and Multi-Stage Filtration for Compact End-Point Installation
Product Overview

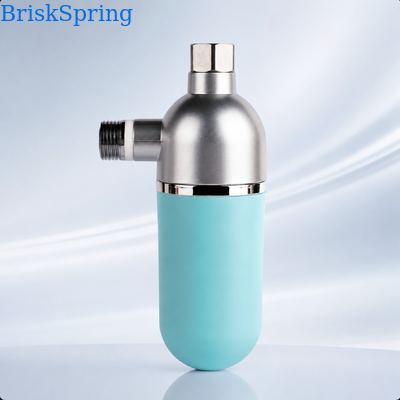

The BriskSpring T5-M3-BS is a compact end-point water-treatment unit designed for compatible municipal-water applications. It combines particulate filtration with MSAP scale-inhibition media to help protect downstream water equipment from suspended impurities and scale-related deposits.
Two replaceable cartridge configurations are available. The SUS316 stainless steel mesh and MSAP option provides a listed filtration accuracy of 40–50 microns, while the carbon fiber and MSAP option provides a listed filtration accuracy of 10 microns. Buyers can select the cartridge structure according to the required filtration level, local water conditions and downstream equipment.
The T5-M3-BS is intended as an end-point pre-treatment product. It is not an ion-exchange water softener and does not remove calcium, magnesium, dissolved salts or TDS from water.
Product Specifications
| Item |
Specification |
| Model |
T5-M3-BS |
| Product Type |
End-Point Scale Inhibitor and Water Pre-Filter |
| Applicable Water |
Municipal Water |
| Connector Size |
1/2 Inch |
| Cartridge Option A |
SUS316 Filter Mesh + MSAP |
| Cartridge Option B |
Carbon Fiber + MSAP |
| Filtration Accuracy |
40–50 Micron or 10 Micron |
| Flow Rate |
≤1 T/H / ≤4.4 GPM |
| Applicable Water Pressure |
0.15–0.75 MPa / 22–109 PSI |
| Applicable Water Temperature |
+1°C to +50°C / 33.8°F to 122°F |
| Working Principle |
MSAP Scale-Inhibition Media |
| Product Dimensions |
170 × 80 × 60 mm |
| Product Dimensions in Inches |
6.69 × 3.15 × 2.36 Inches |
| Item Weight |
0.245 kg |
| Package Dimensions |
215 × 100 × 100 mm |
| Package Weight |
1.05 kg |
| Cartridge Structure |
Replaceable |
Cartridge Options
SUS316 Mesh + MSAP
This cartridge combines a corrosion-resistant SUS316 stainless steel filter mesh with MSAP scale-inhibition media. It provides a listed filtration accuracy of 40–50 microns and is suitable for intercepting visible sediment, rust, sand and suspended particles.
Carbon Fiber + MSAP
This cartridge combines carbon fiber filtration material with MSAP media and provides a listed filtration accuracy of 10 microns. It can be evaluated where finer particulate filtration is required.
The supplied single-page information does not state chlorine-removal, odor-removal or organic-contaminant performance for the carbon fiber option. These functions should not be claimed without supporting test data.

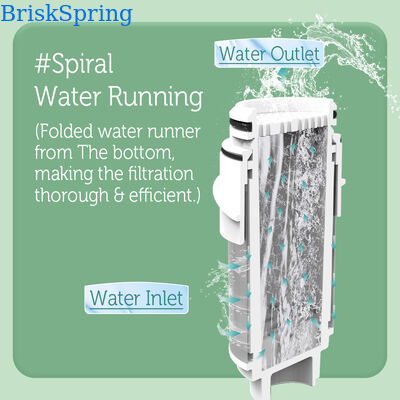

How It Works
Municipal water enters the unit through the confirmed 1/2-inch connection and passes through the selected replaceable cartridge.
The filtration component helps intercept suspended impurities according to the listed filtration accuracy. The MSAP media is designed to provide scale-inhibition support for downstream water pathways and equipment.
Treated water then exits the unit and continues to the connected end-point appliance or water system.
Unlike a conventional salt-based softener, the T5-M3-BS does not use ion-exchange resin, salt regeneration or wastewater discharge. It should not be marketed as removing hardness minerals from the water.
Key Advantages
Dual Filtration and Scale-Inhibition Function
The compact structure combines particulate filtration and scale-control support in one replaceable cartridge system.
Two Filtration Levels
Buyers can choose between a 40–50-micron SUS316 mesh cartridge and a 10-micron carbon fiber cartridge according to the target application.
Replaceable Cartridge Design
The internal cartridge can be replaced without replacing the complete product housing, supporting easier maintenance and repeat-cartridge programs.
Compact End-Point Installation
With dimensions of 170 × 80 × 60 mm, the unit is designed for installation near compatible downstream water equipment where installation space is limited.
1/2-Inch Connection
The listed 1/2-inch connection supports evaluation for common end-point plumbing systems. The exact thread standard and inlet/outlet arrangement should be confirmed before ordering.
Practical Flow Capacity
The listed flow rate is up to 1 T/H, approximately 4.4 GPM, for compatible point-of-use and end-point water applications.
No Salt Regeneration
The MSAP-based design does not require softener salt, regeneration programming or a wastewater drain.
OEM and Private-Label Potential
Cartridge configuration, logo, packaging, instruction language and sales materials can be evaluated for distributors and private-label projects.
Applications
- End-point water-treatment systems
- Commercial drinking-water equipment
- Beverage preparation equipment
- Coffee and hot-drink equipment
- Compatible kitchen water appliances
- Office and hospitality drinking-water systems
- Equipment protection and maintenance programs
- Water-treatment distributors and OEM brands
Final application compatibility should be confirmed according to flow demand, pressure, temperature, water quality and connection requirements.
Installation Notes
Install the product before the compatible downstream appliance or terminal water equipment.
Before installation, confirm:
- 1/2-inch thread standard
- Inlet and outlet direction
- Available installation space
- Inlet water pressure
- Water temperature
- Required flow rate
- Cartridge configuration
- Cartridge replacement clearance
Flush the cartridge before normal use according to the confirmed instruction manual. Do not exceed the listed pressure, temperature or flow limits.
Why Choose BriskSpring
BriskSpring supports water-treatment product development for distributors, commercial equipment suppliers and private-label brands.
Project support can include:
- Cartridge configuration selection
- Private-label branding
- Customized packaging
- Multilingual instructions
- Product images and sales materials
- Replacement-cartridge programs
- Technical document evaluation
Any food-contact, performance or compliance documentation should be checked for the exact cartridge configuration and destination market before commercial use.
FAQ
1. Is this product a water softener?
No. It provides scale-inhibition support but does not remove calcium and magnesium ions like an ion-exchange softener.
2. Does it reduce TDS?
No. The product does not reduce dissolved salts or TDS.
3. What filtration options are available?
The SUS316 mesh and MSAP cartridge is listed at 40–50 microns. The carbon fiber and MSAP cartridge is listed at 10 microns.
4. Is the cartridge replaceable?
Yes. The product uses a replaceable cartridge structure.
5. What is the maximum flow rate?
The listed flow rate is up to 1 T/H, approximately 4.4 GPM.
6. What connection size is used?
The listed connector size is 1/2 inch. The final thread type and connection arrangement should be confirmed before ordering.
7. How often should the cartridge be replaced?
The single-page information does not provide a fixed replacement interval. Cartridge life depends on water quality, daily consumption, sediment level and scale conditions.
8. Can it be used with well water?
This listing is intended for municipal water. Well water requires separate evaluation based on laboratory water-quality data.
