BriskSpring T2-S3G-BS 40 Micron Whole House Spin Down Sediment Pre-Filter with Reusable Stainless Steel Mesh and Manual Scraper-Assisted Cleaning
Product Overview
The BriskSpring T2-S3G-BS is a reusable whole house sediment pre-filter designed for compatible municipal tap water systems.

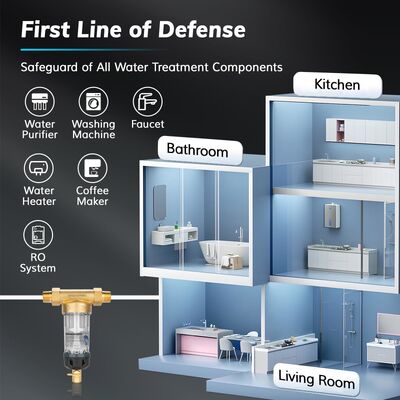

Installed at the main water inlet, the filter helps intercept visible sand, rust particles, pipe debris and suspended sediment before water reaches downstream cartridge filters, water heaters, softeners and household plumbing equipment.
The unit combines a 40 micron SUS316L stainless steel filter mesh with an internal scraper and bottom drain structure. Users can manually clean the mesh and discharge accumulated sediment without frequently replacing disposable filter cartridges.
With a listed flow rate of 4 m3/h and optional 3/4 inch or 1 inch connections, the product can be evaluated for residential and light-commercial inlet water pre-filtration.
Key Features
40 Micron Sediment Filtration

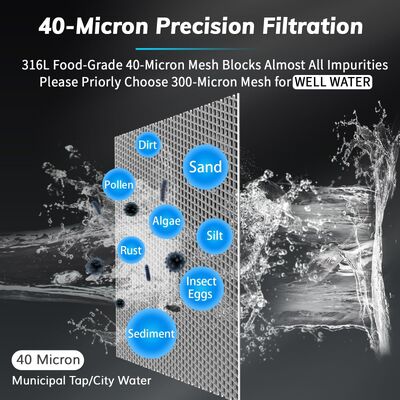

The reusable SUS316L stainless steel mesh provides a listed filtration accuracy of 40 microns and helps reduce visible sediment entering downstream water equipment.
Manual Scraper-Assisted Cleaning

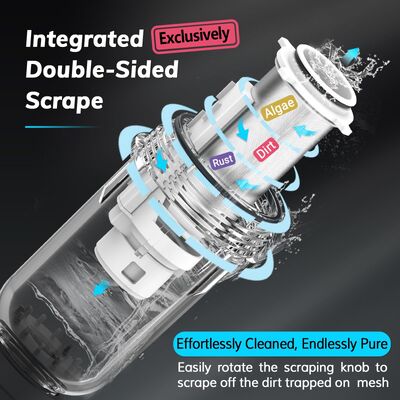

The internal scraper helps loosen particles attached to the mesh surface. Sediment can then be discharged through the bottom drain.
Washable and Reusable Mesh
Unlike disposable coarse sediment cartridges, the stainless steel mesh can be cleaned and reused. Actual service life depends on water quality, operating conditions and maintenance.
4 m3/h Water Flow
The listed water flow is 4 m3/h or 17.6 GPM for compatible whole house and light-commercial water supply applications.
Transparent Filter Bottle
The transparent housing allows users to observe sediment buildup and determine when flushing or maintenance is required.

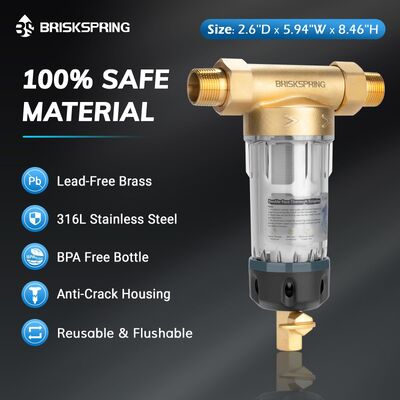

H59-1 Brass Connector Components
The product sheet lists H59-1 brass for the main connector components and SUS316L stainless steel for the filtration mesh.
No Electricity Required
The filter uses manual mechanical cleaning and does not require an electrical connection or electronic controller.

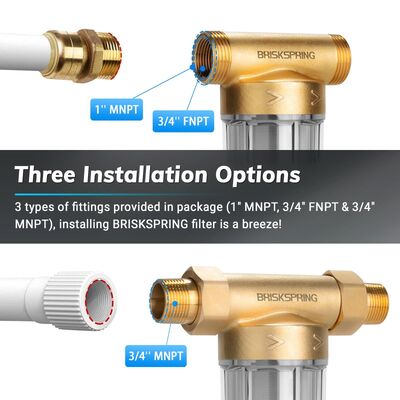

Optional Connection Sizes
Available connector sizes are listed as 3/4 inch and 1 inch. The exact thread standard and connection configuration should be confirmed before ordering.
Technical Specifications
| Item |
Specification |
| Model |
T2-S3G-BS |
| Product Type |
Whole House Spin Down Sediment Pre-Filter |
| Applicable Water |
Municipal Tap Water |
| Filtration Accuracy |
40 Micron |
| Listed Water Flow |
4 m3/h / 17.6 GPM |
| Applicable Water Pressure |
0.15-1.0 MPa / 21.8-145 PSI |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Connection Size |
3/4 Inch or 1 Inch |
| Flushing Mode |
Manual |
| Cleaning Method |
Internal Scraper and Bottom Drain Flushing |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Connector Material |
H59-1 Brass |
| Product Dimensions |
151 x 66 x 215 mm |
| Net Weight |
0.663 kg |
| Power Requirement |
No Electricity Required |
| Appearance Patent Number |
ZL201430054401.X |
| Listed Compliance Information |
NSF, RoHS and SGS |
| Included Components |

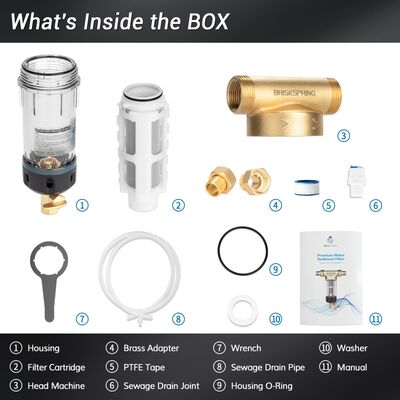

Wrench, Manual, Sewer Drain Connector and Sewage Drain Pipe |
How It Works
Municipal tap water enters the brass filter head and flows through the 40 micron SUS316L mesh.
Visible sediment and suspended particles are intercepted by the mesh before the water continues to downstream pipes and equipment.
During maintenance, the user operates the scraper mechanism to help remove particles from the mesh surface. Opening the bottom drain allows loosened sediment and flushing water to be discharged through the connected drain pipe.
The product is designed for sediment pre-filtration. It does not replace fine cartridge filtration, activated carbon treatment, reverse osmosis, disinfection or ion-exchange water softening.
Product Advantages
Protects Downstream Equipment
Installing the filter before cartridge housings, softeners, water heaters and other equipment helps reduce the amount of coarse sediment entering downstream components.
Reduces Disposable Cartridge Loading
The reusable 40 micron mesh can serve as an upstream protection stage before finer sediment cartridges, potentially reducing coarse particle loading on the downstream filters.
Easy Visual Maintenance
The transparent filter bottle allows users to monitor sediment accumulation without opening the housing.
Compact Installation
The listed dimensions of 151 x 66 x 215 mm support installation in compatible household inlet locations with limited space.
Service-Friendly Structure

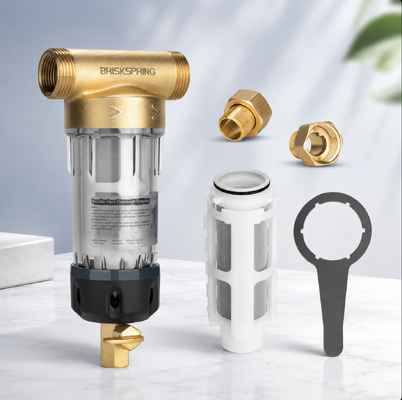

The removable filter mesh, scraper, sealing components and supplied wrench support inspection and routine servicing.
Recommended Applications
- Whole house municipal water inlet systems
- Residential plumbing protection
- Apartment and villa water supply systems
- Upstream protection for cartridge filters
- Upstream protection for water softeners
- Water heater inlet protection
- Light-commercial water supply systems
- Plumbing and water-treatment distribution projects
Installation Guidance
Install the product before downstream water-treatment equipment and household appliances.
Before installation, confirm:
- Inlet and outlet direction
- Required connection size
- BSPP, BSPT, NPT or other thread standard
- Male and female connection arrangement
- Available installation space
- Inlet water pressure
- Drain pipe routing
- Maintenance clearance below the housing
The filter bottle should normally remain vertical with the drain positioned downward.
Protect the unit from freezing, direct sunlight and pressure conditions outside the confirmed operating range.
Maintenance Guidance
Inspect the transparent filter bottle regularly.
The flushing frequency depends on:
- Local water quality
- Sediment concentration
- Household water consumption
- Pressure changes
- Flow reduction
- Operating environment
Operate the scraper and drain according to the confirmed instruction manual. Do not describe the mesh as a lifetime filter because wear, deformation, blockage or sealing deterioration may eventually require component replacement.
OEM and Project Support
BriskSpring can evaluate the following services for distributors, importers and private-label projects:
- Customized logo
- Private-label packaging
- Instruction manual customization
- Barcode and label development
- Connection size matching
- Thread configuration matching
- Sample evaluation
- Replacement mesh and sealing component supply
- Product image and marketing material support
Final specifications, packaging and compliance documents should be confirmed according to the order and destination market.
FAQ
What impurities can this filter help reduce?
The 40 micron mesh helps reduce visible sand, rust particles, pipe debris and suspended sediment.
Does it remove chlorine or odor?
No activated carbon material is listed, so chlorine and odor reduction should not be claimed.
Does it soften hard water?
No. The product does not remove calcium or magnesium ions and is not a water softener.
Does it reduce TDS?
No. It does not remove dissolved salts or reduce TDS.
Is the mesh replaceable?
The structural drawing shows a removable filter mesh. Replacement part availability should be confirmed before ordering.
Is the filter automatic?
No. The listed flushing mode is manual. Cleaning is supported by the internal scraper and bottom drain.
Does it require electricity?
No electrical power is required.
What connection sizes are available?
The product sheet lists 3/4 inch and 1 inch options. Exact thread type, thread gender and sealing method must be confirmed.
