Advanced Bionic Whole House Water Filtration System, Premium Pre-Filter for Sediment, Rust and Impurity Removal
Product Introduction

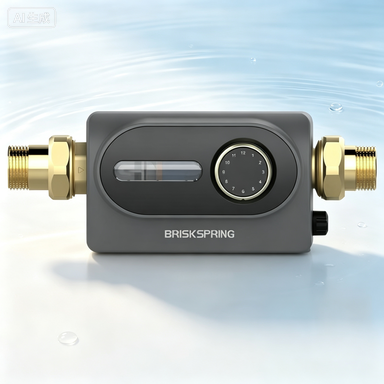

The BRISKSPRING HZ-B-BS Whole House Water Prefilter is an advanced pre-filtration system designed to remove sediment, rust, sand, silt, and suspended particles from household water supplies.
Installed at the main water inlet, this prefilter provides the first line of protection for the entire water system. Featuring an innovative Filter Mesh Disc Filtration Technology, the system captures impurities through multiple layers of precision filtration, ensuring efficient particle removal while maintaining high water flow performance.
Equipped with a durable H59-1 international standard copper body and a high-strength filtration structure, the HZ-B-BS delivers reliable performance under various water conditions. Its double scratching cleaning system and backwashing design help remove accumulated impurities from the filter discs, reducing maintenance frequency and extending service life.
Suitable for residential houses, apartments, villas, hotels, garages, and commercial applications, BRISKSPRING HZ-B-BS provides an efficient and low-maintenance solution for whole-house water protection.
Product Parameters
| Item |
Specification |
| Product Name |
Whole House Water Prefilter |
| Model No. |
HZ-B-BS |
| Brand |
BRISKSPRING |
| Filtration Technology |
Filter Mesh Disc Filtration |
| Filtration Accuracy |
40 Micron |
| Filter Material |
Food Grade Filter Mesh Discs |
| Body Material |
H59-1 International Standard Copper |
| Connector Size |
1 inch |
| Working Pressure |
0.15 ~ 1 MPa |
| Flow Rate |
7 T/H |
| Cleaning Method |
Double Scratching + Simpson Flushing |
| Filter Life |
More Than 3 Years |
Product Advantages
1. Efficient Multi-Layer Disc Filtration
The advanced Filter Mesh Disc Technology uses stacked precision filter layers to create a three-dimensional filtration structure.
It effectively captures:
- Sand particles
- Rust flakes
- Silt
- Suspended solids
Providing cleaner water and protecting household water systems.
2. Whole House Water Protection
Installed at the main water inlet, the prefilter acts as a protective barrier for the entire home.
It helps prevent sediment accumulation in:
- Faucets
- Shower systems
- Water heaters
- Washing machines
- Water pipelines
Extending the service life of downstream equipment.
3. High Flow Rate with Low Pressure Loss
The optimized disc filtration structure provides efficient impurity interception while maintaining smooth water flow.
With a flow rate of up to 7T/H, it supports multiple water outlets simultaneously without affecting daily water usage.
4. Self-Cleaning Design for Easy Maintenance
The integrated double scratching cleaning system helps remove impurities attached to the filter discs.
Combined with flushing discharge, it restores filtration performance quickly without frequent disassembly or filter replacement.
5. Durable Copper Housing Construction
The filter body uses H59-1 international standard copper, offering:
- Excellent corrosion resistance
- High mechanical strength
- Stable sealing performance
- Long-term reliability
6. Long Service Life & Reduced Maintenance Cost
The durable filter structure supports more than 3 years of service life, reducing replacement frequency and lowering maintenance costs.
7. Wide Application Range
Suitable for various water systems, including:
- Residential houses
- Apartments
- Villas
- Hotels
- Commercial buildings
Providing reliable pre-filtration protection.
Working Principle
1. Water Entry
Household water enters the prefilter through the main inlet pipe.
2. Disc Filtration Process
The water passes through the 40μm Filter Mesh Disc filtration unit. Multiple stacked filter discs create narrow filtration channels that intercept suspended particles and impurities.
3. Impurity Separation
Larger particles such as sand, rust, and sediment are trapped between the disc layers, preventing them from entering the household water system.
4. Self-Cleaning Process
When cleaning is required, the internal double scratching mechanism rotates and removes impurities accumulated on the filter discs.
5. Flushing Discharge
The loosened contaminants are discharged through the flushing outlet, restoring filtration efficiency without replacing filter components.
Why Choose BRISKSPRING Water Prefilter?
✅ Advanced Filter Mesh Disc Technology
Multi-layer disc filtration provides efficient sediment removal with stable filtration performance.
✅ Protects the Entire Household Water System
One installation at the main inlet helps protect all downstream pipes and appliances.
✅ High Flow & Low Pressure Loss
Maintains strong water supply even when multiple outlets are used simultaneously.
✅ Easy Cleaning & Low Maintenance
Self-cleaning structure reduces manual maintenance and operating costs.
✅ Durable Materials & Long Service Life
Premium copper housing and reliable filter structure ensure years of stable operation.
✅ Professional Whole House Water Protection Solution
A practical choice for homes, hotels, villas, and commercial buildings.
Key Selling Points:
40μm Precision Disc Filtration | Filter Mesh Technology | 7T/H High Flow Rate | Double Scratching Cleaning System | Low Pressure Loss | Whole House Protection | Maintenance-Friendly Design
Recommended Combination with Water Descaler
For complete whole-house water protection, we recommend combining the BriskSpring Stacked Disc Spin Down Sediment Filter with a Physical Water Descaler.
The Water Descaler provides the second protection stage by:
- Reducing limescale formation
- Preventing scale adhesion
- Protecting pipes and heating equipment
Together, they create a better whole-house water treatment solution.
FAQ
- Q1: Are you a manufacturer?
A: Yes. We are a leading water filtration manufacturer in China, recognized as an industry benchmark enterprise and a standards drafting unit. We have developed multiple generations of water filtration technologies and a full range of product series.
- Q2: Can we use our logo/brand?
A: Yes. We provide OEM and ODM services and have long-term partnerships with globally recognized brands such as iSpring and other leading international companies.
- Q3: Can you provide samples for quality testing?
A: Yes. Samples are available, and we offer them at preferential pricing for evaluation purposes.
- Q4: What is the delivery time for orders?
A: We have a monthly production capacity of up to 100,000 units. Lead time depends on order quantity, model selection, and packaging requirements, typically ranging from 7 to 35 days.
- Q5: Why should I choose BRISKSPRING?
We operate a fully integrated production chain covering industrial design, mold development, plastic injection, and copper component manufacturing. All core parts are produced in-house, ensuring stable quality and cost efficiency.
Most of our products are certified to international standards, including NSF, SGS, and RoHS.
