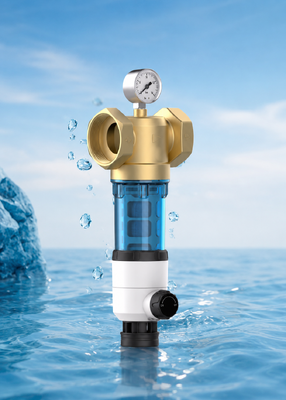

BriskSpring T1-Z2-BS Double-Sided Scraping Whole House Water Pre-Filter with 40 Micron Filtration and Pressure Gauge
Product Overview
The T1-Z2-BS provides an upstream filtration stage for compatible whole house water systems.
Water passes through the 40 micron stainless steel mesh, while visible sediment and suspended particles are retained inside the filter housing. The internal scraping assembly supports manual cleaning of the filter screen, and the drainage structure allows collected sediment to be discharged during maintenance.
The external pressure gauge provides convenient observation of system pressure during operation.
Key Features
40 Micron Sediment Pre-Filtration
The SUS316L stainless steel filter mesh provides a listed filtration precision of 40 microns for municipal tap water pre-filtration.
Double-Sided Scraping Structure
The internal scraping assembly is designed to support cleaning of the filter screen during manual maintenance.
External Pressure Gauge
The top-mounted pressure gauge allows users to observe water pressure during operation.
4 m3/h Water Flow Rate
The listed water flow rate is 4 m3/h or 17.6 GPM for compatible whole house water supply applications.
Manual Flushing
The product uses a manual flushing mode for sediment discharge and routine maintenance.
H59-1 Brass Filter Head
The main connector section is made from H59-1 brass according to the product sheet.
Reusable SUS316L Filter Mesh
The stainless steel filter screen can be cleaned and reused. Actual maintenance frequency depends on local water conditions and usage.
Two Connection Sizes
The product sheet lists 3/4 inch and 1 inch connection options.

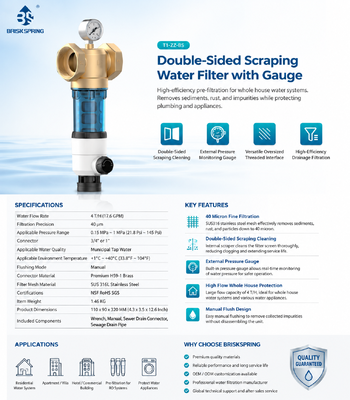

Technical Specifications
| Item |
Specification |
| Model Number |
T1-Z2-BS |
| Product Type |
Whole House Water Pre-Filter with Pressure Gauge |
| Applicable Water Quality |
Municipal Tap Water |
| Filtration Precision |
40 Micron |
| Water Flow Rate |
4 m3/h / 17.6 GPM |
| Applicable Pressure Range |
0.15-1.0 MPa / 21.8-145 PSI |
| Connection Size |
3/4 Inch or 1 Inch |
| Flushing Mode |
Manual |
| Connector Material |
H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Product Dimensions |
110 x 90 x 320 mm |
| Item Weight |
1.46 kg |
| Pressure Monitoring |
External Pressure Gauge |
| Cleaning Structure |
Double-Sided Scraping Assembly |
| Included Components |
Wrench, Manual, Sewer Drain Connector and Sewage Drain Pipe |
Main Structural Components
- Brass Head
- External Pressure Gauge
- Housing O-Ring
- Filter Housing Assembly
- Scrape Cleaning Assembly
- Filter Screen Assembly
- Backwash Opening Cover
- Manual Drainage Structure
Working Principle
Municipal tap water enters the brass filter head and passes through the 40 micron SUS316L stainless steel mesh.
Visible sediment and suspended particles are retained by the filter screen. During maintenance, the scraping assembly supports cleaning of the mesh surface. The collected sediment can then be discharged through the manual drainage structure.
The pressure gauge allows the user to observe the system pressure during operation.
Product Advantages
Whole House Inlet Pre-Filtration
Designed for installation at a compatible household water inlet before downstream plumbing and water equipment.
Visual Pressure Observation
The external gauge provides a direct indication of the current water pressure.
Serviceable Internal Structure
The filter screen, scraping assembly, housing and sealing components are shown as separate serviceable parts in the structural drawing.
No Electrical Power Required
The product uses manual flushing and does not require an electrical connection.
Compact Vertical Structure
The listed dimensions are 110 x 90 x 320 mm, allowing installation in compatible vertical pipeline locations.
Recommended Applications
- Whole house municipal tap water pre-filtration
- Residential water inlet systems
- Apartment and villa water supply systems
- Upstream sediment protection before downstream water equipment
- Compatible plumbing and water-treatment installations
Installation Notes
Before installation, confirm:
- Required connection size
- Actual thread standard
- Male and female connection arrangement
- Water flow direction
- Installation clearance
- Drain pipe position
- System water pressure
Install the filter vertically according to the confirmed product manual. The drainage section should remain accessible for routine flushing and maintenance.
Maintenance Guidance
Inspect and clean the filter according to actual sediment accumulation.
Maintenance frequency may vary depending on:
- Local water quality
- Sediment concentration
- Household water consumption
- Pressure conditions
- Flow reduction
Use the supplied wrench and follow the product manual when removing or servicing the filter housing.
FAQ
What is the filtration precision?
The listed filtration precision is 40 microns.
What type of water is suitable?
The product sheet lists municipal tap water as the applicable water quality.
Does the filter require electricity?
No. The listed flushing mode is manual.
What is the listed water flow rate?
The listed water flow rate is 4 m3/h or 17.6 GPM.
What connection sizes are available?
The listed connection sizes are 3/4 inch and 1 inch.
What is the filter mesh material?
The filter mesh is listed as SUS316L stainless steel.
Does the product include a pressure gauge?
Yes. An external pressure gauge is integrated into the brass filter head.
What accessories are included?
The listed components include a wrench, manual, sewer drain connector and sewage drain pipe.
