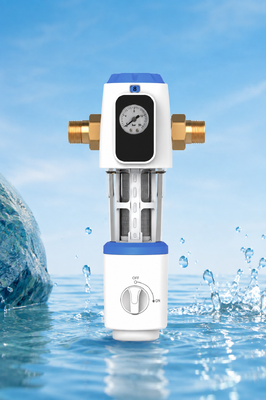

BriskSpring N1-2C-BS Whole House Sediment Pre-Filter with 40 Micron Filtration and SUS316L Stainless Steel Mesh

Product Overview

The N1-2C-BS is designed for installation at a compatible household or light-commercial water inlet.

Water passes through the SUS316L stainless steel mesh, which helps intercept visible sediment and suspended particles before the water reaches downstream plumbing and water equipment.

The integrated pressure gauge allows users to observe the operating pressure. During maintenance, the manual scraping and drainage structure supports filter screen cleaning and sediment discharge.

Key Features

Multiple Filtration Precision Options

The product sheet lists three available filtration precision options:

• 40 Micron
• 90 Micron
• 200 Micron

The final filtration configuration should be selected according to the project requirements and water conditions.

5 T/H Listed Water Flow

The listed water flow rate is 5 T/H or 22 GPM for compatible whole house and light-commercial municipal water systems.

Integrated Pressure Gauge

The front-mounted pressure gauge provides direct observation of the system pressure during operation.

Reusable SUS316L Filter Mesh

The filter mesh is made from SUS316L stainless steel and can be cleaned for repeated use. Maintenance frequency depends on actual water quality and sediment accumulation.

Manual Scraping and Drainage

The internal scraping and drainage components support manual cleaning of the filter assembly and discharge of accumulated sediment.

H59-1 Brass Connector Components

The main connector material is listed as H59-1 brass.

Two Connection Sizes

The available connection sizes are listed as 3/4 inch and 1 inch.

Serviceable Modular Structure

The structural drawing shows separate filter housing, filter assembly, sealing components, drainage components, pressure gauge housing and connection parts for inspection and maintenance.

Technical Specifications

Main Structural Components

• Brass connector assembly
• Integrated pressure gauge
• Front and rear housing covers
• Filter housing
• SUS316L filter screen assembly
• Scraping and drainage seal assembly
• Manual control knob
• Ball valve
• EPDM O-rings
• PTFE gasket
• Hex nut and connector components

Working Principle

Municipal tap water enters the connector assembly and flows through the selected SUS316L stainless steel filter mesh.

Visible sediment and suspended particles are retained by the filter screen. The filtered water then continues to the downstream plumbing system.

The pressure gauge provides a visual pressure indication during operation. When maintenance is required, the manual control and drainage structure can be used to support scraping and sediment discharge.

This product is intended for sediment pre-filtration. It is not presented as a water softener, activated carbon filter, disinfection device or reverse osmosis system.

Product Advantages

Selectable Filtration Configuration

The availability of 40, 90 and 200 micron options allows distributors and project buyers to select different pre-filtration levels.

Whole House Flow Capacity

The listed 5 T/H flow rate supports compatible residential and light-commercial water inlet systems.

Convenient Pressure Observation

The integrated gauge helps users observe the operating pressure without installing a separate external gauge.

Reusable Filter Element

The SUS316L mesh can be cleaned and reused, reducing dependence on frequently replaced coarse sediment cartridges.

Manual Maintenance Structure

The product uses a mechanical manual flushing and scraping system and does not require an electrical power connection.

Compact Integrated Design

The pressure gauge, filter housing, scraping structure and drainage control are integrated into one vertical unit.

Recommended Applications

• Whole house municipal tap water pre-filtration
• Residential water inlet systems
• Apartment and villa water supply systems
• Light-commercial water inlet systems
• Upstream sediment filtration before downstream water equipment
• Plumbing and water-treatment distribution projects

Installation Guidance

Before installation, confirm:

• Required filtration precision
• Required connection size
• Water flow direction
• Available vertical installation space
• System pressure
• Drainage position
• Maintenance clearance
• Compatibility with the existing pipeline

The unit should be installed according to the supplied manual. The control knob and drainage connection should remain accessible for operation and servicing.

Maintenance Guidance

Inspect the filter regularly according to actual sediment accumulation.

Maintenance frequency may depend on:

• Local water quality
• Selected filtration precision
• Sediment concentration
• Household water consumption
• Operating pressure
• Changes in water flow

Use the supplied wrench and follow the product manual when opening or servicing the housing. Check O-rings and sealing components during maintenance and reinstall them correctly before restoring water pressure.

FAQ

What filtration precision options are available?

The product sheet lists 40, 90 and 200 micron options.

What type of water is suitable?

The listed applicable water quality is municipal tap water.

What is the listed water flow rate?

The listed flow rate is 5 T/H or 22 GPM.

Does the product include a pressure gauge?

Yes. A pressure gauge is integrated into the front section of the product.

Is the filter automatic?

No. The listed flushing mode is manual.

Does it require electricity?

No electrical system is shown or listed.

What is the filter mesh material?

The filter mesh is made from SUS316L stainless steel.

What connection sizes are available?

The listed connection sizes are 3/4 inch and 1 inch.

What accessories are included?

The listed accessories include a wrench, manual, sewer drain connector and sewage drain pipe.
