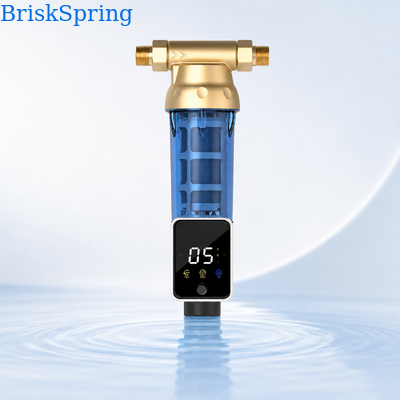

BriskSpring Q2-BS Automatic Whole House Sediment Pre-Filter with 40 Micron Filtration and SUS316L Stainless Steel Mesh
Product Overview
The Q2-BS is designed for installation at the main water inlet before downstream plumbing and water equipment.
Municipal tap water passes through the 40 micron stainless steel filter mesh. The mesh helps intercept visible sand, rust particles, pipe debris and suspended sediment before the water continues into the household pipeline.
An automatic flush controller and integrated backwash assembly support scheduled or controlled cleaning of the filtration structure. Collected sediment can be discharged through the drainage system during the flushing process.
This product is intended for sediment pre-filtration. It is not a reverse osmosis system, water softener, activated carbon filter or disinfection device.
Key Features
Automatic Flushing System
The product sheet lists the flushing mode as Auto. The structural drawing shows an automatic flush controller working with an integrated backwash assembly.
6 m3/h Water Flow Rate
The listed flow rate is 6 m3/h or 26.4 GPM, supporting compatible whole house and light-commercial municipal water applications.
40 Micron Sediment Filtration
The filter uses a 40 micron mesh to help reduce visible sediment and suspended particles entering downstream plumbing and equipment.
SUS316L Stainless Steel Mesh
The filter mesh cartridge is made from SUS316L stainless steel and is designed for repeated flushing and continued use.
H59-1 Brass Connector Body
The main connection body uses H59-1 brass, providing a durable metal structure for compatible pipeline installation.
Transparent Filter Bottle
The transparent housing allows users to observe the internal filter structure and sediment accumulation during operation.
Two Connection Options
The product sheet lists 3/4 inch and 1 inch connection sizes. The final thread standard and connection configuration should be confirmed before ordering.
Serviceable Modular Construction
The filter bottle, mesh cartridge, sealing components, backwash assembly and controller are shown as separate parts for inspection and servicing.

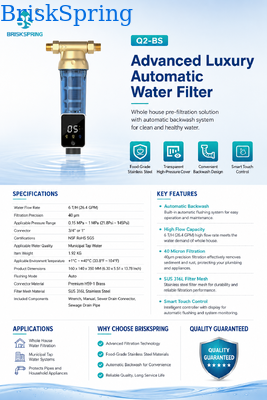

Technical Specifications
| Item |
Specification |
| Model Number |
Q2-BS |
| Product Type |
Automatic Whole House Sediment Pre-Filter |
| Applicable Water Quality |
Municipal Tap Water |
| Filtration Precision |
40 Micron |
| Water Flow Rate |
6 m3/h / 26.4 GPM |
| Applicable Pressure Range |
0.15-1.0 MPa / 21.8-145 PSI |
| Connection Size |
3/4 Inch or 1 Inch |
| Flushing Mode |
Auto |
| Control Configuration |
Automatic Flush Controller |
| Cleaning Structure |
Integrated Backwash Assembly |
| Connector Material |
H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Product Dimensions |
160 x 140 x 350 mm |
| Item Weight |
1.92 kg |
| Included Components |
Wrench, Manual, Sewer Drain Connector and Sewage Drain Pipe |
| Compliance Information |
NSF, RoHS and SGS Information Shown, Exact Model Coverage Must Be Verified |
Main Structural Components
- Tongue-Type Connector
- Hex Nut
- Sealing Gasket
- Main Body and Housing Head
- O-Ring Seal
- Filter Bottle Assembly
- SUS316L Filter Mesh Cartridge
- Integrated Backwash Assembly
- Automatic Flush Controller
- Drainage Knob
- Sealing Cap
- Circlip
Working Principle
Municipal tap water enters through the brass connector body and passes through the 40 micron SUS316L stainless steel filter mesh.
Visible sediment and suspended particles are retained inside the filter structure. The filtered water then continues into the downstream pipeline.
The automatic flush controller activates or manages the flushing process according to the confirmed controller settings. The integrated backwash assembly helps clean the filter structure, while loosened sediment is discharged through the drainage connection.
The exact flushing interval and controller operating procedure should follow the confirmed product manual.
Product Advantages
Automatic Maintenance Support
The automatic flush controller reduces dependence on frequent manual operation and supports more convenient routine maintenance.
Whole House Flow Capacity
The listed 6 m3/h flow rate is suitable for compatible residential and light-commercial inlet water systems.
Reusable Filtration Structure
The SUS316L stainless steel mesh can be flushed and reused. Actual service life depends on water quality, sediment loading and maintenance.
Visual Inspection
The transparent filter bottle allows users to observe the internal condition without immediately opening the housing.
Compact Integrated Design
The controller, filter bottle, brass connector body and backwash structure are integrated into one vertical unit.
Downstream Equipment Protection
Installing the filter before water heaters, cartridge filters and other compatible equipment can help reduce coarse sediment loading.
Recommended Applications
- Whole house municipal tap water pre-filtration
- Residential main water inlet systems
- Apartments and villas
- Light-commercial water supply systems
- Upstream protection for cartridge filtration systems
- Upstream protection for water heaters
- Plumbing and water-treatment distribution projects
Installation Guidance
Before installation, confirm:
- Required connection size
- BSPP, BSPT, NPT or other thread standard
- Male and female connection arrangement
- Water flow direction
- System pressure
- Drain pipe routing
- Vertical installation clearance
- Controller power requirement
- Controller operating settings
- Maintenance space around the filter bottle
Install the product according to the supplied manual. Keep the controller, filter bottle and drainage connection accessible for inspection and servicing.
Maintenance Guidance
Maintenance and flushing frequency depend on:
- Local water quality
- Sediment concentration
- Household water consumption
- Selected controller settings
- Changes in water flow
- Operating pressure
- Sediment visible inside the transparent housing
Inspect the sealing components, drainage connection and filter mesh during scheduled servicing. Follow the confirmed manual when opening or reinstalling the filter bottle.
FAQ
Is the Q2-BS an automatic filter?
The parameter sheet lists the flushing mode as Auto and shows an automatic flush controller.
What is the filtration precision?
The listed filtration precision is 40 microns.
What is the listed water flow rate?
The listed flow rate is 6 m3/h or 26.4 GPM.
What type of water is suitable?
The listed applicable water quality is municipal tap water.
What material is the filter mesh?
The filter mesh is made from SUS316L stainless steel.
What material is used for the connector body?
The connector body is listed as H59-1 brass.
What connection sizes are available?
The listed connection sizes are 3/4 inch and 1 inch.
What accessories are included?
The listed components include a wrench, manual, sewer drain connector and sewage drain pipe.
Does the product soften water?
No. It does not remove calcium and magnesium ions and should not be described as a water softener.
Does it reduce TDS?
No. The product is intended for sediment pre-filtration and does not remove dissolved salts.
