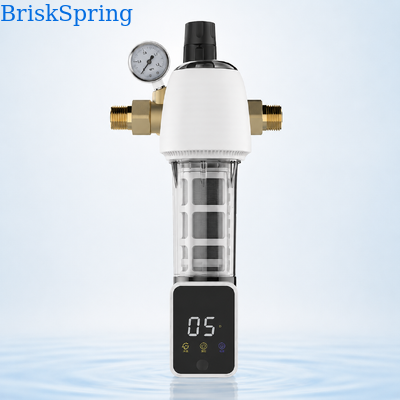

BriskSpring F3-W1-BS Whole House Spin-Down Sediment Pre-Filter with 40 Micron Filtration SUS316L Stainless Steel Mesh and Integrated Pressure Gauge
Product Overview
The F3-W1-BS is designed for installation at the main water inlet before downstream plumbing and water equipment.
Municipal tap water passes through the 40 micron SUS316L stainless steel mesh, helping intercept visible sand, rust, pipe debris and suspended sediment before the water continues into the downstream pipeline.
The transparent filter housing allows convenient observation of the internal filtration structure, while the integrated pressure gauge provides visual pressure monitoring during operation.
The modular construction shown in the structural drawing includes the filter bottle, filter mesh component, cleaning skeleton, sealing components and drainage structure for routine inspection and maintenance.
Key Features
40 Micron Sediment Filtration
The filter uses a 40 micron SUS316L stainless steel mesh to help reduce visible sediment and suspended particles entering household plumbing and downstream water equipment.
4 T/H Water Flow Rate
The listed water flow rate is 4 T/H or 17.6 GPM, providing suitable capacity for compatible whole house and light commercial municipal water applications.
SUS316L Stainless Steel Filter Mesh
The filtration element is made from SUS316L stainless steel, providing a durable and reusable mesh structure for sediment pre-filtration.
Premium H59-1 Brass Connections
The main connection components use premium H59-1 brass for a robust metal connection structure in compatible water supply pipelines.
Integrated Pressure Monitoring
A pressure gauge is integrated into the product structure, allowing users to visually observe system pressure during operation and maintenance.
Multiple Large Connection Sizes
The product is available with 1 inch, 1 1/4 inch or 1 1/2 inch connections, supporting different pipeline configurations.
Transparent Filter Housing
The transparent filter bottle allows users to observe the internal filter condition and sediment accumulation without immediately opening the housing.
Serviceable Modular Structure
The structural drawing shows separate filter mesh, filter bottle, sealing components and cleaning parts for convenient servicing and maintenance.
Technical Specifications
| Item |
Specification |
| Model Number |
F3-W1-BS |
| Product Type |
Whole House Spin-Down Sediment Pre-Filter |
| Water Flow Rate |
4 T/H / 17.6 GPM |
| Filtration Precision |
40 Micron |
| Applicable Pressure Range |
0.15 MPa-1 MPa / 21.8 PSI-145 PSI |
| Connection Size |
1 Inch / 1 1/4 Inch / 1 1/2 Inch |
| Applicable Water Quality |
Municipal Tap Water |
| Connector Material |
Premium H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F-104 F |
| Product Dimensions |
140 x 150 x 410 mm |
| Item Weight |
2.8 kg |
| Included Components |
Wrench, Manual, Sewer Drain Connector, Sewage Drain Pipe |
| Certifications |
NSF, RoHS, SGS |
Main Structural Components
- Main Head Component
- Pressure Gauge
- Hex Nut
- Tongue-Shape Connector
- Sealing Gasket
- Housing O-Ring
- Filter Bottle Component
- Top Filter Screen Cover
- Filter Mesh Component
- Scratch and Wash Skeleton
- Drainage Structure
- Circlip
Working Principle
Municipal tap water enters through the brass connection section and passes through the 40 micron SUS316L stainless steel filter mesh.
Visible sediment, rust particles, sand and suspended impurities are retained by the filter mesh before the water continues into the downstream plumbing system.
The integrated pressure gauge provides visual pressure observation during operation.
Collected sediment can be removed during routine maintenance through the cleaning and drainage structure shown in the product assembly.
This product is intended for sediment pre-filtration. It is not a water softener, reverse osmosis system, activated carbon filter or disinfection device.
Product Advantages
Whole House Inlet Protection
Installed at the main water inlet, the filter helps reduce coarse sediment entering downstream pipelines and household water equipment.
High Flow Configuration
The listed 4 T/H flow rate supports compatible residential and light commercial water supply applications.
Reusable Stainless Steel Mesh
The SUS316L mesh is designed for repeated cleaning and continued use, reducing dependence on disposable filter elements.
Visual Pressure Observation
The integrated pressure gauge provides convenient pressure reference during operation and maintenance.
Flexible Pipeline Matching
Three connection sizes are available to support different whole house plumbing requirements.
Compact Vertical Installation
The product measures 140 x 150 x 410 mm, combining filtration, pressure monitoring and maintenance access in one integrated vertical structure.
Recommended Applications
- Whole house municipal tap water pre-filtration
- Residential main water inlet systems
- Villas and apartments
- Light commercial water supply systems
- Upstream protection for water heaters
- Upstream protection for cartridge filtration systems
- Plumbing and water treatment distribution projects
Installation Guidance
Before installation, confirm the required connection size and pipeline thread standard.
Install the filter at the main water inlet according to the supplied manual and ensure that the water flow direction matches the product installation requirement.
Keep sufficient space around the filter housing, pressure gauge and drainage section for inspection and maintenance.
The installation position should remain accessible for routine cleaning and servicing.
Maintenance Guidance
Inspect the filter regularly according to actual water quality and sediment accumulation.
Maintenance frequency depends on local water quality, water consumption, sediment concentration and operating conditions.
When visible sediment accumulates inside the filter housing or water flow performance changes, clean the filter mesh and drainage structure according to the supplied manual.
Inspect sealing components during maintenance and reinstall all parts correctly before returning the system to service.
FAQ
What is the filtration precision?
The listed filtration precision is 40 microns.
What is the water flow rate?
The listed water flow rate is 4 T/H or 17.6 GPM.
What water source is suitable?
The product is designed for municipal tap water.
What material is the filter mesh?
The filter mesh is made from SUS316L stainless steel.
What material is used for the connector?
The connector material is premium H59-1 brass.
What connection sizes are available?
Available sizes are 1 inch, 1 1/4 inch and 1 1/2 inch.
Does the product include a pressure gauge?
Yes. A pressure gauge is integrated into the product structure.
What accessories are included?
The listed components include a wrench, manual, sewer drain connector and sewage drain pipe.
Does this filter soften hard water?
No. It is a sediment pre-filter and does not remove dissolved calcium or magnesium ions.
Does it reduce TDS?
No. The product is designed for sediment filtration rather than dissolved mineral removal.
