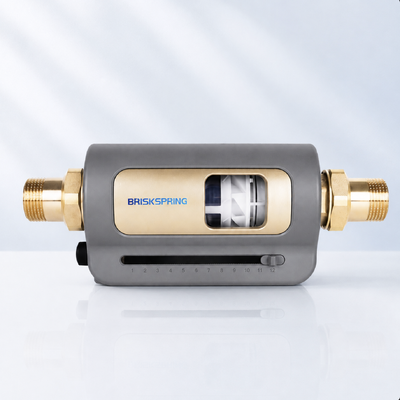

BriskSpring HZ-A 7 T/H 40 Micron Whole House Sediment Pre Filter with 360 Degree Swivel Installation
Product Overview
HZ-A is designed for installation at the main household water inlet to provide first-stage sediment filtration before water enters downstream plumbing and household equipment.
The 40 micron SUS316L stainless steel filter mesh helps reduce visible sand, rust, pipe debris and suspended sediment from municipal tap water.
A rated flow capacity of 7 T/H or 30.8 GPM supports whole house water demand, while the 360 degree swivel installation design gives installers greater flexibility when matching different pipeline orientations.
The reusable filtration structure and manual backwash design support routine cleaning without replacing the entire filter unit, making HZ-A suitable for distributors, plumbing wholesalers and water-treatment installation companies seeking a practical high-flow pre-filter platform.
Key Features
7 T/H High Flow Capacity:
The listed flow rate reaches 7 T/H or 30.8 GPM, providing strong water-handling capacity for compatible whole house municipal tap water systems.
40 Micron Sediment Filtration:
The SUS316L stainless steel mesh provides 40 micron filtration to help reduce visible sediment, rust, sand and suspended particles before they enter downstream household plumbing.
360 Degree Swivel Installation:
The adjustable installation structure provides greater flexibility for different pipeline directions and helps installers adapt the product to varying residential plumbing layouts.
Manual Backwash Cleaning:
The backwash structure supports routine sediment discharge and filter cleaning, helping reduce maintenance complexity and dependence on disposable replacement cartridges.

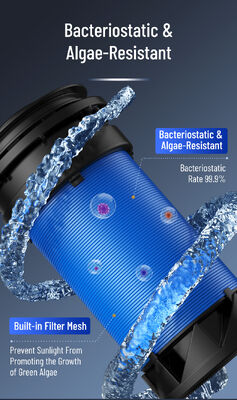

SUS316L Stainless Steel Mesh:
The reusable stainless steel filter element provides a durable filtration structure suitable for repeated cleaning and continued use.
Premium H59-1 Brass Connections:
H59-1 brass is used for the connection section to provide a robust metal interface for compatible household pipeline installations.
3/4 Inch and 1 Inch Options:
Two connection sizes allow distributors and installers to cover common residential plumbing requirements with the same product platform.
Dual Filtration Structure:
The HZ-A product design incorporates a dual filtration concept to strengthen its positioning as a whole house pre-filtration solution.

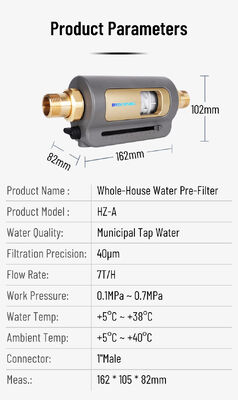

Technical Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
HZ-A |
| Product Type |
Whole House Sediment Pre Filter |
| Water Flow Rate |
7 T/H / 30.8 GPM |
| Filtration Precision |
40 Micron |
| Applicable Pressure Range |
0.15 MPa-1 MPa / 21.8-145 PSI |
| Connector Size |
3/4 Inch or 1 Inch |
| Applicable Water Quality |
Municipal Tap Water |
| Flushing Mode |
Manual |
| Cleaning Design |
Backwash |
| Installation Design |
360 Degree Swivel |
| Filtration Structure |
Dual Filtration |
| Connector Material |
Premium H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Product Dimensions |
270 x 80 x 240 mm |
| Item Weight |
0.9 kg |
| Included Components |
Wrench, Manual, Sewer Drain Connector, Sewage Drain Pipe |
B2B Buyer Benefits
High Flow for Whole House Programs:
The 7 T/H flow capacity gives distributors a strong high-flow option for residential whole house pre-filtration product lines.
Installer Friendly Configuration:
The 360 degree swivel installation structure helps reduce restrictions caused by pipeline orientation and makes the product easier to adapt to different installation environments.
Reusable Filtration Platform:
The SUS316L stainless steel mesh can be cleaned and reused, helping reduce cartridge replacement frequency and routine ownership cost.
Lower Maintenance Burden:
Manual backwash cleaning allows accumulated sediment to be discharged during routine maintenance without replacing the complete filtration unit.
Common Connection Coverage:
3/4 Inch and 1 Inch options help wholesalers and installation companies cover a wider range of residential plumbing applications.
Compact High-Flow Solution:
At 270 x 80 x 240 mm and 0.9 kg, HZ-A combines high listed flow capacity with a relatively compact structure for storage, transport and installation.
Distributor Friendly Product Positioning:
The combination of 40 micron filtration, 7 T/H flow, 360 degree installation and reusable stainless steel filtration gives importers and wholesalers several clear selling points for channel development.
Working Principle
Municipal tap water enters the HZ-A through the H59-1 brass connection and passes through the 40 micron SUS316L stainless steel filtration structure.
Visible sediment, rust, sand and suspended particles are retained by the filter mesh while filtered water continues into the household water system.
During routine maintenance, the manual backwash structure is used to discharge accumulated impurities and clean the filtration area.
The 360 degree swivel installation design allows the filter body to be adjusted to suit compatible pipeline layouts.
Applications
- Whole House Municipal Tap Water Pre Filtration
- Residential Main Water Inlet Systems
- Apartment Water Supply Systems
- Villa Water Supply Systems
- Residential Plumbing Projects
- Upstream Protection for Water Heaters
- Upstream Protection for Cartridge Filters
- Whole House Water Treatment Systems
Installation and Maintenance
Install the HZ-A on the main municipal water inlet according to the required water flow direction.
Select the appropriate 3/4 Inch or 1 Inch connector according to the pipeline configuration.
Use the 360 degree swivel structure to adjust the product position according to the available installation space and pipe direction.
Maintain adequate service space around the filter for inspection and backwash operation.
Cleaning frequency should be adjusted according to local water quality, sediment accumulation and household water consumption.
FAQ
What is the filtration precision of HZ-A?
The filtration precision is 40 microns.
What is the rated flow rate?
The rated flow rate is 7 T/H or 30.8 GPM.
What connection sizes are available?
The HZ-A is available with 3/4 Inch or 1 Inch connections.
What material is used for the filter mesh?
The filter mesh is made from SUS316L stainless steel.
What material is used for the connector section?
The connector section uses premium H59-1 brass.
Does the HZ-A support flexible installation?
Yes. It features a 360 degree swivel installation structure.
Does the product support backwash cleaning?
Yes. The product uses a manual backwash cleaning design.
What water source is the filter designed for?
It is designed for municipal tap water.
What is the applicable pressure range?
The applicable pressure range is 0.15 MPa to 1 MPa or 21.8 PSI to 145 PSI.
What is included with the product?
The package includes a wrench, manual, sewer drain connector and sewage drain pipe.
