BriskSpring HZ-D 40 Micron Whole House Sediment Pre Filter with 7 T/H Flow and 360 Degree Swivel Installation
Product Overview
HZ-D is designed for installation at the main household water inlet to provide first-stage sediment filtration before water enters downstream plumbing and household water equipment.
The 40 micron SUS316L stainless steel filter mesh helps reduce visible sediment, rust, sand and suspended particles from municipal tap water.
A rated flow capacity of 7 T/H or 30.8 GPM supports whole house water demand, while the 360 degree swivel installation design helps installers adapt the unit to different compatible pipeline directions.
The reusable filtration structure and manual backwash design support routine cleaning without replacing the entire filter unit.

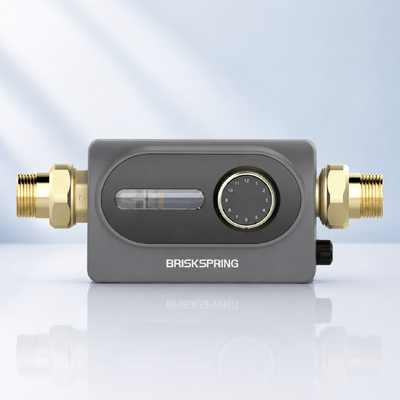

Compared with other models in the same platform, HZ-D uses a different exterior housing with a front observation window and a monthly maintenance reminder dial, providing clearer visual interaction for end users.
Key Features

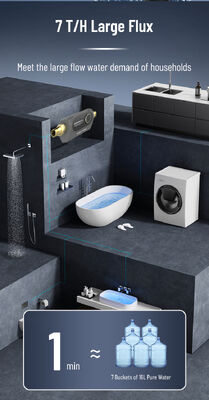

7 T/H High Flow Capacity:
The listed flow rate reaches 7 T/H or 30.8 GPM, providing strong water-handling capacity for compatible whole house municipal tap water systems.
40 Micron Sediment Filtration:
The SUS316L stainless steel filter mesh provides 40 micron filtration to help reduce visible sediment, rust, sand and suspended particles before they reach downstream plumbing.
360 Degree Swivel Installation:
The adjustable installation structure helps installers match different pipeline directions and reduces restrictions caused by installation orientation.
Manual Backwash Cleaning:
The backwash structure supports routine sediment discharge and filter cleaning, helping reduce maintenance complexity and dependence on disposable replacement cartridges.
Visual Inspection Window:
The front window allows users to visually inspect the internal filtration area without removing the outer housing, making routine condition checks more convenient.
1-12 Month Reminder Dial:
The front maintenance reminder dial provides a simple visual reference for scheduled cleaning and inspection, helping end users build a more consistent maintenance routine.

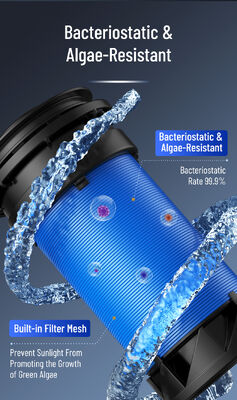

SUS316L Stainless Steel Mesh:
The reusable stainless steel filter element provides a durable filtration structure suitable for repeated cleaning and continued use.
Premium H59-1 Brass Connections:

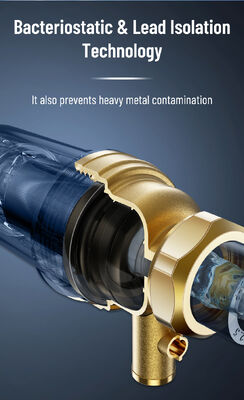

H59-1 brass is used for the connection section to provide a robust metal interface for compatible household pipeline installations.

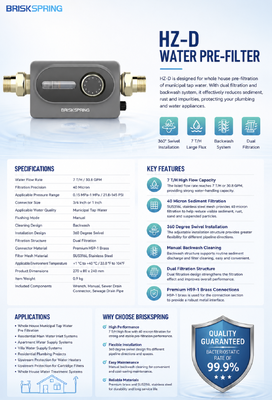

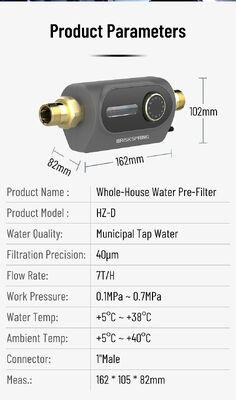

Technical Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
HZ-D |
| Product Type |
Whole House Sediment Pre Filter |
| Water Flow Rate |
7 T/H / 30.8 GPM |
| Filtration Precision |
40 Micron |
| Applicable Pressure Range |
0.15 MPa-1 MPa / 21.8-145 PSI |
| Connector Size |
3/4 Inch or 1 Inch |
| Applicable Water Quality |
Municipal Tap Water |
| Flushing Mode |
Manual |
| Cleaning Design |
Backwash |
| Installation Design |
360 Degree Swivel |
| Filtration Structure |
Dual Filtration |
| Connector Material |
Premium H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Product Dimensions |
270 x 80 x 240 mm |
| Item Weight |
0.9 kg |
| Included Components |
Wrench, Manual, Sewer Drain Connector, Sewage Drain Pipe |
B2B Buyer Benefits
High Flow for Whole House Product Lines:
The 7 T/H flow capacity gives distributors a strong residential whole house pre-filtration option for markets where water demand is a key purchasing factor.
More Intuitive User Experience:
The observation window and month reminder dial add visible maintenance cues, helping distributors offer a product that is easier for end users to understand and manage.
Installer Friendly Configuration:
The 360 degree swivel installation structure helps reduce pipeline orientation limitations and makes installation more flexible across different residential layouts.
Reusable Filtration Platform:
The SUS316L stainless steel mesh can be cleaned and reused, helping reduce routine cartridge replacement and long-term maintenance cost.
Easy Maintenance Structure:
Manual backwash cleaning allows accumulated sediment to be discharged during scheduled maintenance without replacing the complete filtration unit.
Common Residential Connection Sizes:
3/4 Inch and 1 Inch options help wholesalers and installation companies cover common household plumbing configurations.
Differentiated Exterior Design:
HZ-D uses a more enclosed and visually integrated housing than other models in the same platform, giving importers and distributors an additional styling option without changing the core filtration specification.
Working Principle
Municipal tap water enters the HZ-D through the H59-1 brass connection and passes through the 40 micron SUS316L stainless steel filtration structure.
Visible sediment, rust, sand and suspended particles are retained by the filter mesh, while filtered water continues into the household water system.
During routine maintenance, the manual backwash structure is used to discharge accumulated impurities and clean the filtration area.
The 360 degree swivel installation structure allows the unit to be adjusted to suit compatible pipeline layouts, while the front observation window and reminder dial support easier visual inspection and maintenance scheduling.
Applications
- Whole House Municipal Tap Water Pre Filtration
- Residential Main Water Inlet Systems
- Apartment Water Supply Systems
- Villa Water Supply Systems
- Residential Plumbing Projects
- Upstream Protection for Water Heaters
- Upstream Protection for Cartridge Filters
- Whole House Water Treatment Systems
Installation and Maintenance
Install the HZ-D on the main municipal water inlet according to the required water flow direction.
Select the appropriate 3/4 Inch or 1 Inch connector according to the pipeline configuration.
Use the 360 degree swivel structure to adjust the product position according to the available installation space and pipe direction.
Maintain adequate service space around the filter for inspection and backwash operation.
Cleaning frequency should be adjusted according to local water quality, sediment accumulation and household water consumption.
FAQ
What is the filtration precision of HZ-D?
The filtration precision is 40 microns.
What is the rated flow rate?
The rated flow rate is 7 T/H or 30.8 GPM.
What connection sizes are available?
The HZ-D is available with 3/4 Inch or 1 Inch connections.
What material is used for the filter mesh?
The filter mesh is made from SUS316L stainless steel.
What material is used for the connector section?
The connector section uses premium H59-1 brass.
Does the HZ-D support flexible installation?
Yes. It features a 360 degree swivel installation structure.
Does the product support backwash cleaning?
Yes. The product uses a manual backwash cleaning design.
What is the function of the front dial?
The 1-12 month dial provides a visual maintenance reminder for routine inspection and cleaning.
What is the function of the observation window?
The front window allows users to visually inspect the internal filtration area without removing the outer housing.
What water source is the filter designed for?
It is designed for municipal tap water.
