Advanced Point-of-Entry Water Filtration System with Pressure-Resistant Housing
Clean water starts at the entrance of the plumbing system. Our advanced point-of-entry filtration unit is developed for households, property projects and water-treatment distributors looking for an efficient first-stage barrier against incoming particulate contamination.
Backed by more than a decade of filtration engineering experience, our company has supplied customized water-treatment products to more than 600 international brands. Pre-filtration is one of our major development areas, with over 1,000 configurations created for different markets, installation conditions and filtration requirements.
The latest generation combines a rugged inlet assembly, visible cartridge monitoring, rapid servicing and configurable filtration media in one compact system.
Designed for the First Stage of Water Protection
Installed before downstream water equipment, the unit acts as an initial barrier for incoming municipal water. It can help intercept unwanted physical particles before they enter household piping, water heaters, faucets, softening equipment or other treatment devices.
This makes it suitable for customers who want to improve inlet-water cleanliness while providing additional protection for their downstream plumbing infrastructure.

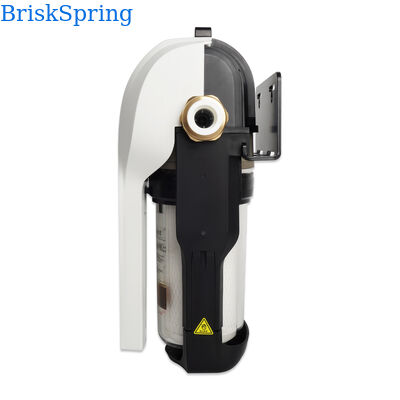

Strong Housing for Demanding Installation Conditions
The pressure-bearing components have been developed with structural stability in mind. Instead of relying on conventional threaded compression alone, the housing incorporates a mechanical locking arrangement that distributes holding force through the supporting arms.
This construction helps maintain a secure assembly during pressure fluctuations and repeated operation. Performance verification has included high-load pressure evaluation, burst testing and repeated hydraulic shock testing.
Advanced Metal Inlet Assembly
The upper body uses an integrated titanium-aluminum alloy construction. This material selection provides a combination of strength, corrosion resistance and dimensional stability for long-term use in water-treatment applications.
The internal water route is designed to isolate potentially contaminating metal components from the treated flow. Water-contact components are selected from food-contact-grade materials to support safer water delivery.
Replace the Cartridge Without Specialized Equipment
Maintenance is one of the most important considerations for household filtration equipment. This model uses a quick-service structure that eliminates the need for a conventional filter wrench.
The integrated valve performs several functions within one operation:
- Shut off incoming water
- Relieve internal pressure
- Release the filter assembly
- Allow cartridge access
After opening the housing, the used element can be removed and the replacement installed quickly. For regular household maintenance, the complete cartridge-changing operation can take only a few seconds.

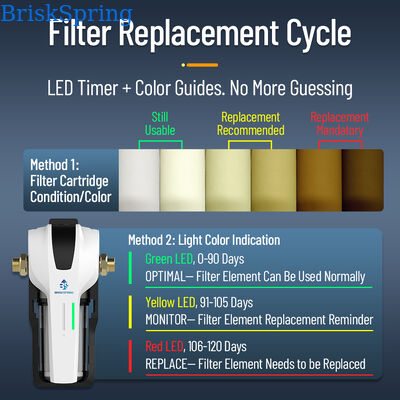

Three-Stage Visual Reminder
Instead of relying solely on a calendar-based replacement schedule, the product provides a three-color visual indication. The indicator allows users to check the approximate condition of the filtration element at a glance.
This makes the system easier to operate for homeowners and reduces dependence on technical maintenance knowledge.
Choose the Filtration Configuration for Your Market
Different regions have different inlet-water characteristics. Therefore, the filtration configuration does not have to be limited to a single media type.
Available options include:
- PET-based filtration
- PP filtration
- UDF carbon media
- Multi-layer combinations
- Customer-specific filtration configurations
Our engineering team can adjust the internal filtration arrangement according to the intended water-quality target.
Transparent Chamber for Convenient Inspection
The clear filter chamber provides direct visibility of the filtration element. Users can observe accumulated particles without dismantling the unit.
This is particularly useful for areas where incoming water contains visible sediment or rust particles, as the condition of the filter can be checked during routine household inspection.
Hydraulic Cleaning Assistance
The internal filtration structure incorporates a water-powered cleaning principle. As water passes through the assembly, hydraulic movement assists in dislodging deposits accumulated on the filtration surface.
This design is intended to reduce the frequency of manual cleaning and maintain a more consistent filtration area during operation. It provides a practical solution for users who prefer low-maintenance inlet filtration.
What Does the System Help Protect?
The primary role of this equipment is physical pre-treatment. By intercepting larger suspended matter before it reaches downstream equipment, it can help reduce the amount of sediment entering:
- Household plumbing
- Water heaters
- Faucets
- Shower systems
- Water softeners
- Reverse osmosis equipment
- Other terminal filtration systems
The result is a cleaner starting point for subsequent water-treatment stages.
Filtration Performance
The standard configuration is available with filtration ratings of 40 micron and 300 micron. The 300-micron configuration is suitable for applications requiring an initial coarse barrier, while finer configurations can be selected when smaller suspended particles need to be captured.
The final configuration can be adjusted according to the customer's water conditions and downstream equipment.
Product Data
| Specification |
Details |
| Equipment Category |
Point-of-Entry Water Filtration |
| Product Name |
Compact Central Water Purifier |
| Intended Water Source |
Municipal Supply |
| Operating Range |
5°C-45°C |
| Available Filtration Levels |
40 μm / 300 μm |
| Nominal Water Throughput |
50 L/min |
| Cartridge Options |
PET / PP / UDF |
| Maintenance Method |
Quick-Release Service |
| Filter Status Display |
3-Color Indicator |
| Housing Type |
Transparent Reinforced Chamber |
| Installation Position |
Main Inlet Line |
Reliability Verification
The structural design has been evaluated through multiple environmental and mechanical tests. Testing has included:
Hydraulic shock endurance
Up to 200,000 cycles under 12 kg water hammer conditions.
Burst resistance
Pressure evaluation reaching as high as 64 kg.
Cold-environment evaluation
Testing conducted at temperatures down to -30°C.
These evaluations help assess resistance to pressure surges, housing deformation and low-temperature operating risks.
Application Recommendations
This filtration unit can be considered for:
Residential Projects
A first filtration stage for houses, apartments and villas.
Water Treatment Distributors
A compact inlet-protection product for local filtration portfolios.
Plumbing Protection
A preliminary barrier installed before water-using equipment.
Water Purification Systems
A pre-treatment stage before finer filtration technologies.
Private Label Programs
A customizable platform for distributors developing their own filtration brands.
Built for OEM Development
Our manufacturing capabilities extend beyond supplying standard catalog products. Customers can discuss requirements for:
- Brand identification
- Housing appearance
- Product color
- Filter media
- Filtration grade
- Connection design
- Retail packaging
- Instruction materials
- Customized product configuration
Our technical team can work from an existing specification or help develop a new configuration for a particular market.
Manufacturing & Quality Control
Our production facility in the Shanghai region operates according to an ISO 9001:2015 quality management system. Production procedures cover incoming material control, assembly management, performance inspection and finished-product verification.
This controlled manufacturing process is designed to provide consistent quality for both trial orders and repeat OEM programs.
Frequently Asked Questions
What is the purpose of an inlet filtration system?
It provides an initial treatment stage before water enters the rest of a building's plumbing network. Its main task is to capture suspended physical matter such as sediment, sand and rust.
Where should the unit be installed?
The recommended position is on the incoming municipal water line, before downstream treatment equipment or major water-consuming appliances.
Can homeowners maintain the unit themselves?
Yes. The quick-release construction is designed to simplify routine cartridge servicing and does not require a specialized filter-opening tool.
How can I tell whether the cartridge needs attention?
The built-in three-color visual display provides an easy reference for monitoring cartridge condition.
Does the product only use one type of filter element?
No. Different filtration media can be selected. PET, PP and UDF configurations are available, while customized combinations can also be discussed.
Can the filter treat well water?
The standard model is intended for municipal water. For groundwater or other non-standard sources, we recommend evaluating the incoming water quality before selecting the filtration configuration.
Does it remove dissolved contaminants?
The standard pre-filtration stage is mainly intended for suspended and particulate matter. Additional treatment media or downstream technologies may be required for dissolved substances, microorganisms, scale or other specific contaminants.
Can the product be branded for our company?
Yes. We provide OEM and private-label development and can discuss branding, appearance, packaging and technical configurations according to project requirements.
Partner With an Experienced Filtration Manufacturer
A successful filtration product requires more than a filter element. Housing construction, water-path safety, maintenance convenience, filtration media and long-term supply capability all influence the final user experience.
With extensive experience in pre-filtration development and OEM manufacturing, we can help distributors and water-treatment companies build a suitable product solution for their target market.
Send us your application, required filtration level, connection specification and estimated quantity to start a technical discussion.
