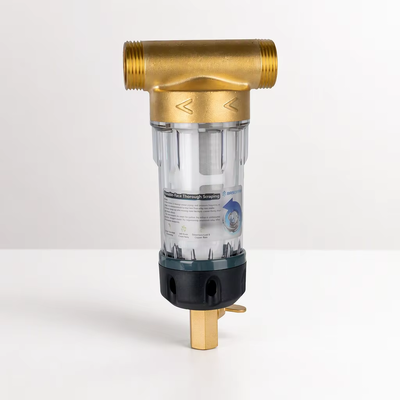

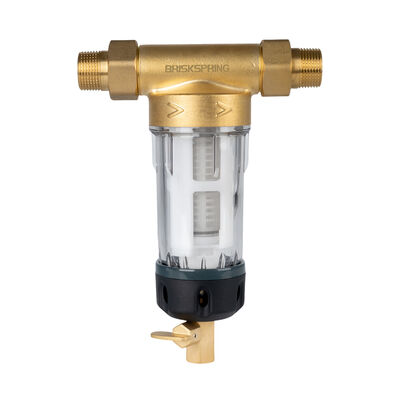

Whole House Spin Down Sediment Filter, Reusable Pre-Filter System for Rust, Sand and Impurity Removal
In the quest for cleaner, safer water, innovation continues to drive the evolution of filtration systems. Among the array of options available, spin down water filters stand out as a remarkable solution, offering a blend of simplicity, effectiveness, and efficiency.
Understanding Spin Down Water Filters
At its core, a spin down water filter operates on a brilliantly simple principle: using centrifugal force to separate sediment and other impurities from water. Unlike traditional filters that rely on cartridges or membranes, spin down filters harness the power of spinning motion to capture debris before it enters your water system.
Key attributes
| filtration accuracy |
40 Micron |
| Flow Rate |
4 T/H |
| Material |
Plastic |
| application |
Commercial, Garage, Hotel, Household |
| filter life |
More Than 3 Years |
| power source |
Manual |
| app-controlled |
No |
| private mold |
Yes |
| packaging types |
Corrugated Box |
| place of origin |
Zhejiang, China |
| brand name |
BRISKSPRING |
| power (w) |
0 |
| voltage (v) |
0 |
| model number |
T4-Z1-BS |
| Product Name |
Water Prefilter |
| Certifications |
NSF, RoHS |
| Washing Mode |
Double Scratching, Simpson Flushing |
| Filter Mesh Material |
Food Grade SS316L |
| Connector Size |
3/4" or 1" |
| Pressure |
0.15 ~ 1MPa |
| Copper Material |
H59-1 International Standard Copper |
| Filtering Mesh Accuracy |
40 Micro |
| Flow Rate |
4 T |
| Applicable Water Pressure |
0.15Mpa - 1.5Mpa |
How Do They Work?
The mechanism behind spin down filters is elegant in its simplicity. Water enters the filter housing and is directed into a spinning chamber. As the water spins rapidly, heavier particles like sand, sediment, and rust are flung outward by centrifugal force. These particles then settle at the bottom of the filter, away from the clean water flowing through the center.
Benefits of Spin Down Water Filters
- Improved Water Quality: By removing sediment and other particles, spin down filters ensure that your water is free from impurities.
- Extended Appliance Lifespan: Prevents sediment from damaging plumbing fixtures, water heaters, and appliances.
- Low Maintenance: Periodically flushing out collected sediment is all that's needed to keep your filter running smoothly.
- Cost-Effective: Long-lasting performance with minimal maintenance requirements offers excellent value.
- Versatility: Suitable for home, business, farm, or industrial facility applications.
Why Choose BriskSpring Water Filter?
First Line of Defense
The sediment filter acts as the primary stage in your whole house water filtration system, protecting appliances like faucets, shower heads, water heaters, and washing machines from sediment damage.
Reusable & Extended Filter Life
No disassembly required - simply rotate the scraping knob to remove trapped particles and turn the drain valve to flush out sediments. The double-sided scrape feature prolongs sediment filter life.
100% Safe Materials
Constructed with food-grade stainless steel mesh filter screens and lead-free brass components. The BPA-free water filter bottle withstands temperatures as low as -30°C and has passed rigorous water hammer resistance testing.
Easy Installation

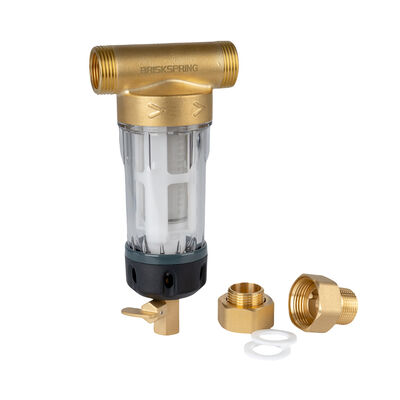

Includes three types of fittings (1" MNPT, 3/4" FNPT, and 3/4" MNPT) to accommodate different pipe sizes. Quick installation won't affect water pressure levels.
Important Notes
- Only suitable for municipal tap water (+1°C to +40°C). Not for waste water or corrosive liquids.
- Ensure water flow direction marked on valve body aligns with pipe flow direction.
- All installation, testing, and maintenance should be performed by professionals.
Installation Guide
The installation point for a spin-down filter or sediment trap is typically directly after the pressure tank in a well system or prior to a whole house filtration system in municipal water applications.
Key Points
Automatic Backwash Cleaning | 40μm Precision Filtration | SUS 316L Filter Mesh | 6T/H High Flow Rate | Sediment Rust Sand Removal | No Electricity Required | Whole House Protection | Low Maintenance | Long Service Life
Recommended Combination with Water Descaler
For complete whole-house water protection, we recommend combining the BriskSpring Stacked Disc Spin Down Sediment Filter with a Physical Water Descaler.
The Water Descaler provides the second protection stage by:
- Reducing limescale formation
- Preventing scale adhesion
- Protecting pipes and heating equipment
Together, they create a better whole-house water treatment solution.
FAQ
- Q1: Are you a manufacturer?
A: Yes. We are a leading water filtration manufacturer in China, recognized as an industry benchmark enterprise and a standards drafting unit. We have developed multiple generations of water filtration technologies and a full range of product series.
- Q2: Can we use our logo/brand?
A: Yes. We provide OEM and ODM services and have long-term partnerships with globally recognized brands such as iSpring, and other leading international companies.
- Q3: Can you provide samples for quality testing?
A: Yes. Samples are available, and we offer them at preferential pricing for evaluation purposes.
- Q4: What is the delivery time for orders?
A: We have a monthly production capacity of up to 100,000 units. Lead time depends on order quantity, model selection, and packaging requirements, typically ranging from 7 to 35 days.
- Q5: Why should I choose BRISKSPRING?
We operate a fully integrated production chain covering industrial design, mold development, plastic injection, and copper component manufacturing. All core parts are produced in-house, ensuring stable quality and cost efficiency.
Most of our products are certified to international standards, including NSF, SGS, and RoHS.
