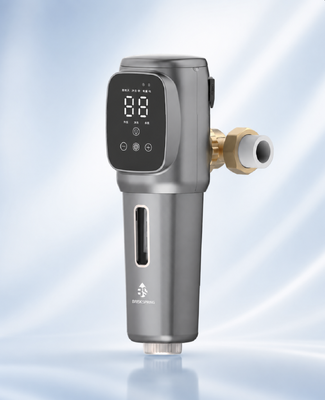

BriskSpring AT-30G-BS 6 T/H High Flow Capacity Whole House Water Pre-Filter with 40 Micron Sediment Filtration and Fully Automatic Flushing
Product Overview
AT-30G-BS is designed for installation at the main household water inlet to provide first-stage sediment filtration before municipal tap water enters downstream plumbing and household water equipment.
The 40 micron SUS316L stainless steel filter mesh helps reduce visible sediment, rust, sand and suspended particles while maintaining a rated flow capacity of 6 T/H or 26.4 GPM.
Compared with conventional manual pre-filters, AT-30G-BS integrates an automatic flushing system and intelligent touch control interface to simplify routine cleaning and maintenance.
The 360 degree universal installation structure provides greater flexibility for different compatible pipeline layouts, while the H59-1 brass connection section and reusable stainless steel mesh support long-term residential water-treatment applications.
Key Features
6 T/H High Flow Capacity: The rated flow rate reaches 6 T/H or 26.4 GPM, providing strong water-handling capacity for compatible whole house residential water systems.

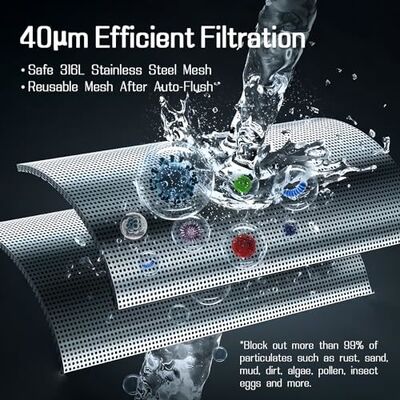

40 Micron Sediment Filtration: The SUS316L stainless steel mesh provides 40 micron filtration to help reduce visible sediment, rust, sand and suspended particles from municipal tap water.
Fully Automatic Flushing: The automatic flushing design reduces dependence on completely manual cleaning and provides a more convenient maintenance experience for end users.

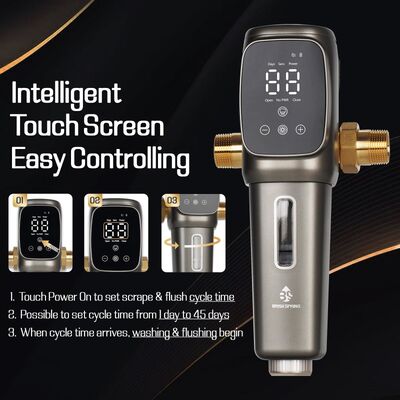

Intelligent Touch Control: The integrated touch control interface provides a more intuitive way to manage the automatic pre-filter and supports a modern product experience for residential users.

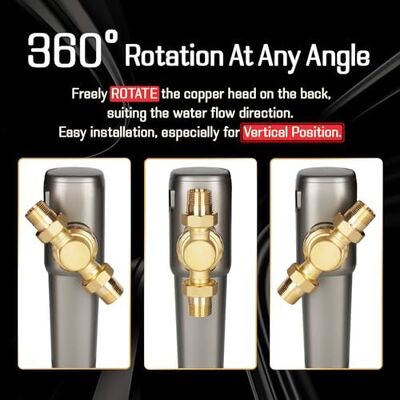

360 Degree Universal Installation: The adjustable installation structure helps installers adapt the product to different compatible pipeline directions and installation layouts.
SUS316L Stainless Steel Mesh: The reusable stainless steel filtration structure supports repeated cleaning and continued use, helping reduce dependence on disposable filter cartridges.
Premium H59-1 Brass Connections: H59-1 brass is used for the connection section, providing a robust metal interface for compatible residential plumbing systems.
Water Hammer Prevention Technology: The product design incorporates water hammer prevention technology as part of its whole house pre-filtration structure.
Technical Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
AT-30G-BS |
| Product Type |
Fully Automatic Whole House Water Pre-Filter |
| Water Flow Rate |
6 T/H / 26.4 GPM |
| Filtration Accuracy |
40 Micron |
| Applicable Water Pressure |
0.15 MPa-1 MPa / 21.8-145 PSI |
| Connector |
3/4 Inch or 1 Inch |
| Applicable Water Quality |
Municipal Tap Water |
| Flushing Mode |
Automatic |
| Control Type |
Intelligent Touch Control |
| Installation Design |
360 Degree Universal Installation |
| Connector Material |
Premium H59-1 Brass |
| Filter Mesh Material |
SUS316L Stainless Steel |
| Internal Power Supply |
1 x 18650 Lithium-Ion Battery |
| Applicable Environment Temperature |
+1 C to +40 C / 33.8 F to 104 F |
| Product Dimensions |
143 x 162 x 310 mm |
| Item Weight |
1.56 KG |
| Gross Weight |
2.21 KG |
| Certification Information |
NSF, RoHS, SGS |
| Included Components |
Wrench, Manual, Sewer Drain Connector, Sewage Drain Pipe |
B2B Buyer Benefits
Automatic Maintenance Positioning: The automatic flushing system gives distributors a clear upgrade path from traditional manual pre-filters and creates a stronger selling point for mid-to-high-end residential product lines.
High Flow for Whole House Applications: The 6 T/H flow capacity supports household water demand while adding upstream sediment filtration to the plumbing system.
Lower Cartridge Dependency: The reusable SUS316L mesh supports repeated cleaning, helping reduce routine filter replacement requirements and long-term maintenance cost.
Installer-Friendly Structure: The 360 degree universal installation design provides greater flexibility when adapting the product to different pipeline layouts.
Clear Material Specification: H59-1 brass connectors and SUS316L stainless steel mesh provide professional buyers with defined material specifications for sourcing and project comparison.
Modern User Interface: The touch control panel adds visible product differentiation and helps importers and distributors position the AT-30G-BS above basic mechanical pre-filter models.
Common Residential Connection Sizes: 3/4 Inch and 1 Inch options help wholesalers and installation companies cover common whole house plumbing requirements with one product platform.

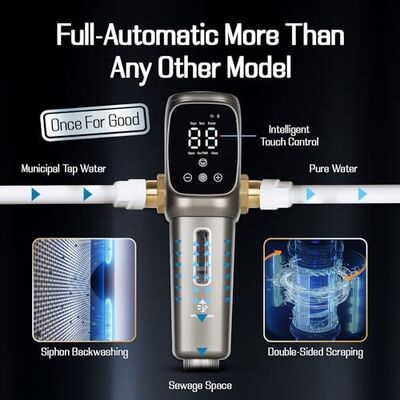

Working Principle
Municipal tap water enters the AT-30G-BS through the H59-1 brass connection and passes through the 40 micron SUS316L stainless steel filter mesh.
Visible sediment, rust, sand and suspended particles are intercepted by the filtration structure before the water continues into the household plumbing system.
During routine maintenance, the automatic flushing system operates to help discharge accumulated impurities from the filter.

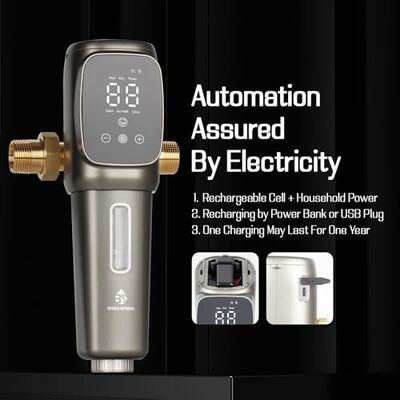

The touch control interface is used to manage the automatic cleaning function, while the internal battery supplies power to the control system.
Applications
- Whole House Municipal Tap Water Pre-Filtration
- Residential Main Water Inlet Systems
- Apartment Water Supply Systems
- Villa Water Supply Systems
- Residential Plumbing Projects
- Upstream Protection for Water Heaters
- Upstream Protection for Household Water Appliances
- Whole House Water Treatment Systems
Installation and Maintenance
Install the AT-30G-BS on the main municipal water inlet according to the required water flow direction.
Select the appropriate 3/4 Inch or 1 Inch connection according to the pipeline specification.
Use the 360 degree installation structure to adjust the product position according to the available installation space and pipe direction.
Maintain sufficient service space around the unit for inspection, drainage and routine servicing.
Automatic flushing frequency should be adjusted according to actual water quality, sediment accumulation and household water consumption.
FAQ
What is the filtration accuracy of AT-30G-BS?
The filtration accuracy is 40 microns.
What is the rated water flow?
The rated flow rate is 6 T/H or 26.4 GPM.
What connection sizes are available?
The product is available with 3/4 Inch or 1 Inch connections.
What material is used for the filter mesh?
The filter mesh is made from SUS316L stainless steel.
What material is used for the connector?
The connection section uses premium H59-1 brass.
Does AT-30G-BS support automatic flushing?
Yes. The product is designed with an automatic flushing system.
How is the product controlled?
It uses an intelligent touch control interface.
What is the internal power supply?
The unit uses 1 x 18650 lithium-ion battery.
What water source is it designed for?
It is designed for municipal tap water.
What is the applicable pressure range?
The applicable water pressure range is 0.15 MPa to 1 MPa or 21.8 PSI to 145 PSI.
