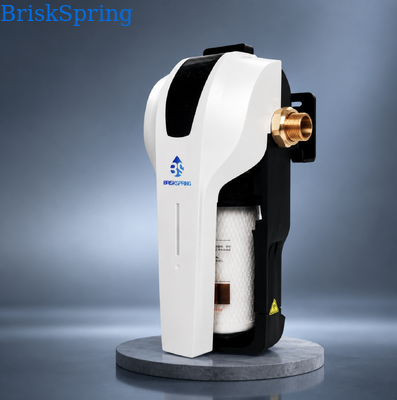

BriskSpring N1-2C-BS Compact Central Water Purifier with 3 T/H Flow Rate and Quick-Release Cartridge for 50,000 L Capacity
Product Overview
N1-2C-BS is designed to provide central filtration before municipal tap water reaches downstream household water points and appliances.
The standard composite cartridge uses PP Origami + Carbon Fiber with a filtration precision of 1-10 microns. The PP filtration section targets suspended particles and sediment, while the carbon layer supports treatment of chlorine-related taste and odor.
With a rated flow of 3 T/H / 13.2 GPM, the unit provides significantly greater water-handling capacity than typical point-of-use filters while maintaining a compact housing measuring only 380 x 235 x 158 mm.
Its greatest differentiation is the maintenance structure. The integrated valve combines unlocking, water shutoff and depressurization, allowing the user to open the front housing and remove the cartridge directly without shutting off the main household water supply.
For importers, distributors and installers, this design helps reduce routine service complexity while creating an additional consumable-cartridge business opportunity after the initial equipment sale.
Key Features
3-Second Quick-Release Cartridge
The front-service structure allows the filter cartridge to be removed and replaced in approximately 3 seconds after unlocking the unit.
No Main Water Shutdown Required
The integrated valve shuts off the internal water path during cartridge service, eliminating the need to close the household main water valve during normal replacement.
One-Turn Valve Operation
The control structure combines unlock, shutoff and depressurization functions into one operating sequence for easier servicing.
3 T/H Whole House Flow
Rated water flow reaches 3 T/H / 13.2 GPM, making the purifier suitable for compatible residential central water treatment applications.
1-10 Micron Composite Filtration
The standard cartridge combines PP Origami + Carbon Fiber to provide 1-10 micron filtration for municipal tap water.
50,000 L Rated Capacity
Rated total purified water capacity reaches 50,000 L, giving distributors and project buyers a defined technical reference for product selection.
Three-Color Filter Reminder
The indicator provides an intuitive replacement reference:
- Green: 0-90 Days
- Yellow: 91-105 Days
- Red: 106-120 Days
Compact Central Design
At 380 x 235 x 158 mm, N1-2C-BS provides central water filtration in a compact format suitable for residential installation areas where space efficiency matters.
Flexible Connection Sizes
Available 3/4 Inch and 1 Inch interfaces cover common residential main water line configurations.
Battery-Powered System
The unit uses 1 x 18650 lithium-ion battery, reducing dependence on a nearby wall power outlet.
Technical Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
N1-2C-BS |
| Product Type |
Compact Central Water Purifier |
| Water Flow Rate |
3 T/H / 13.2 GPM |
| Filtration Precision |
1-10 Micron |
| Applicable Pressure Range |
0.1-0.4 MPa / 14.5-58.0 PSI |
| Connector |
3/4 Inch or 1 Inch |
| Connector Material |
Premium H59-1 Brass |
| Applicable Water Quality |
Municipal Tap Water |
| Filter Cartridge Material |
PP Origami + Carbon Fiber |
| Rated Total Purified Water Capacity |
50,000 L |
| Internal Power Supply |
1 x 18650 Lithium-Ion Battery |
| Applicable Environment Temperature |
+5 C to +38 C / 41 F to 100.4 F |
| Product Dimensions |
380 x 235 x 158 mm |
| Item Weight |
1.5 KG |
| Included Components |
Compact Central Water Purifier, User Manual, 2 Sealing Gaskets, 2 Brass Connectors |
B2B Buyer Benefits
Lower After-Sales Service Time
The front quick-release structure reduces the number of steps required for routine cartridge replacement, helping installation companies shorten service visits.
Lower End-User Maintenance Barrier
Customers do not need to shut off the main household water valve during routine filter replacement, reducing one of the common barriers associated with central filtration maintenance.
Consumable Cartridge Business
The replaceable cartridge structure creates ongoing replacement demand after the initial purifier sale, providing distributors with a recurring consumables category rather than a single equipment transaction.
Multiple Cartridge Positioning
Product materials show support for different cartridge solutions including PET folded filtration, UDF activated carbon/carbon fiber and PP melt-blown filtration, allowing distributors to develop configurations for different local water-treatment requirements.
Easier Product Differentiation
The compact housing, front cartridge access, one-turn valve and three-color reminder system provide visible selling points that are easy for distributors to demonstrate to dealers and end users.
Practical Residential Connection Range
3/4 Inch and 1 Inch connection options allow one product platform to cover multiple residential plumbing specifications.
Cartridge System
The standard N1-2C-BS configuration uses a PP Origami + Carbon Fiber composite cartridge.
The PP filtration structure provides fine physical filtration for sediment and suspended particles, while the carbon section supports treatment of chlorine-related taste and odor.
Product materials also show additional cartridge configurations for different market requirements:
- PET Folded Filter Element
- UDF Activated Carbon / Carbon Fiber
- PP Polypropylene Melt-Blown Filter Element
This gives B2B buyers greater flexibility when developing filtration programs for different regions and water-quality conditions.
Cartridge Replacement
- Turn the top knob to the unlock position.
- Open the front cover.
- Pull the filter cartridge straight out.
- Install the replacement cartridge and close the housing.
The integrated valve automatically supports water shutoff and depressurization during this service process, so the household main water valve does not need to be closed.
Applications
- Whole House Municipal Tap Water Filtration
- Residential Central Water Purification
- Apartment Water Treatment Systems
- Villa Water Treatment Systems
- Main Water Inlet Filtration
- Residential Plumbing Projects
- Upstream Treatment for Household Water Systems
FAQ
What is the flow rate of N1-2C-BS?
The rated flow rate is 3 T/H / 13.2 GPM.
What filtration precision does it provide?
The filtration precision is 1-10 microns.
What type of cartridge is supplied?
The standard filter cartridge uses PP Origami + Carbon Fiber.
What is the rated total purified water capacity?
The rated total purified water capacity is 50,000 L.
Do I need to shut off the household main water valve when replacing the cartridge?
No. The integrated valve allows the cartridge to be serviced without shutting off the main water valve.
How is cartridge replacement performed?
Unlock the knob, open the front cover, pull the cartridge straight out and install the replacement.
What connection sizes are available?
The unit supports 3/4 Inch or 1 Inch connections.
What water source is it designed for?
It is designed for municipal tap water.
What is the applicable working pressure?
The applicable pressure range is 0.1-0.4 MPa / 14.5-58.0 PSI.
How is the filter replacement status displayed?
The three-color indicator uses green for 0-90 days, yellow for 91-105 days and red for 106-120 days.
