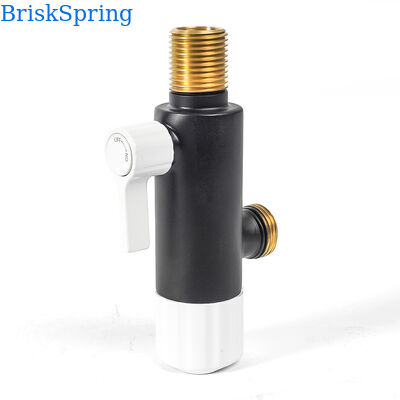

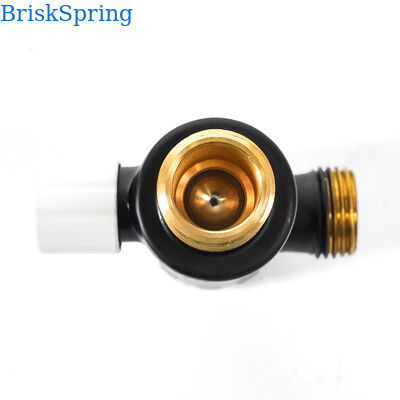

BriskSpring M81-BS MSAP Bioactive Anti-Scale Water Filter with 99% Scale Inhibition and 400 Micron Filtration
Short Description
BriskSpring M81-BS is a compact MSAP bioactive anti-scale water filter designed for municipal tap water systems.
It combines 99% super scale inhibition, 400 micron precision filtration, food-grade cartridge construction, 316L stainless steel filter mesh and easy cartridge replacement in one compact water-treatment unit.
With a clean water flow of 23 L/min / 5.98 GPM, 1/2 Inch connection and a working pressure range up to 1.6 MPa, M81-BS provides distributors and installers with a practical anti-scale filtration solution for residential water treatment projects.
Product Overview
M81-BS is designed to combine scale inhibition and physical filtration in one compact product.
The internal cartridge uses MSAP bioactive anti-scale material together with a 400 micron precision filter mesh, helping reduce scale formation while intercepting larger suspended particles from municipal tap water.
The product uses H59-1 brass connections and a food-grade cartridge, while the filtration section incorporates 316L stainless steel mesh for durability in long-term water-contact applications.
Its removable cartridge structure also makes routine cartridge replacement straightforward, helping distributors and installers reduce maintenance complexity while creating continued replacement-cartridge demand after the initial product sale.
Key Features
99% Super Scale Inhibition Rate:
The MSAP bioactive material is designed to provide a 99% super scale inhibition rate for compatible municipal water applications.
400 Micron Precision Filtration:
The internal filter mesh provides 400 micron filtration for larger suspended particles while supporting the anti-scale treatment process.
Food-Grade 316L Stainless Steel Mesh:
Food-grade cartridge construction and 316L stainless steel filter mesh provide a durable material combination for water-contact applications.
23 L/min Clean Water Flow:
Clean water flow is rated at 23 L/min ±0.05% / 5.98 GPM, supporting practical residential water demand.
Wide Working Pressure Range:
Applicable working pressure is 0.1-1.6 MPa / 14.5-232 PSI.
High Temperature Compatibility:
Applicable water temperature ranges from 0 C to +85 C / 32 F to 185 F.
12-Month Cartridge Life:
The specified filter cartridge life is 12 months, giving distributors a clear replacement-cycle reference.
Easy Cartridge Replacement:
The removable cartridge structure allows the internal filter element to be replaced without replacing the complete product housing.
Compact Product Structure:
The product measures approximately 122 mm in length and 66 mm in overall height, supporting installation where available space is limited.
H59-1 Brass Connection:
The 1/2 Inch connection uses H59-1 brass, giving professional buyers a clearly defined connector specification.
Technical Specifications
| Item |
Specification |
| Brand |
BriskSpring |
| Model |
M81-BS |
| Product Type |
MSAP Bioactive Material Anti-Scale Water Filter |
| Working Pressure |
0.1-1.6 MPa / 14.5-232 PSI |
| Connector Size |
1/2 Inch |
| Connector Material |
H59-1 Brass |
| Cartridge Grade |
Food Grade |
| Filter Mesh Material |
316L Stainless Steel |
| Applicable Water Quality |
Municipal Tap Water |
| Applicable Water Temperature |
0 C to +85 C / 32 F to 185 F |
| Clean Water Flow |
23 L/min ±0.05% / 5.98 GPM |
| Filtration Accuracy |
400 Micron |
| Filter Cartridge Life |
12 Months |
| Total Net Water Volume |
20 T / 5,283 Gallon |
| Product Length |
122 mm / 4.80 Inch |
| Overall Height |
66 mm / 2.59 Inch |
| Reference Dimension |
33 mm / 1.29 Inch |
| Item Weight |
3.57 KG |
| Package Weight |
4.27 KG |
B2B Buyer Benefits
Anti-Scale and Filtration in One Product:
M81-BS combines MSAP scale inhibition with 400 micron physical filtration, giving distributors a more differentiated product than a basic inline filter.
Recurring Cartridge Business:
The replaceable cartridge has a specified 12-month service life, creating continued consumable demand after the first equipment sale.
Clear Technical Positioning:
23 L/min flow, 400 micron filtration, 1.6 MPa maximum working pressure and 85 C maximum applicable water temperature provide professional buyers with measurable purchasing parameters.
Compact Installation Footprint:
The compact 122 mm structure helps installers integrate the product into compatible water systems where installation space is limited.
Defined Material Specification:
H59-1 brass connectors, food-grade cartridge construction and 316L stainless steel filter mesh provide clear material information for importers and project buyers.
Strong Demonstration Value:
The anti-scale function, replaceable cartridge and visible compact structure give distributors clear selling points that can be explained easily to downstream dealers and end users.
Product Structure
The M81-BS structure includes:
- Water Inlet
- Water Outlet
- Shell
- Decorative Cover
- Filter Cartridge
- Knob
Water enters through the inlet, passes through the internal MSAP anti-scale cartridge and 400 micron filter structure, and then exits through the outlet into the downstream water system.
Cartridge Replacement
- Step 1: Shut off the water supply before maintenance.
- Step 2: Open the cartridge-side knob.
- Step 3: Remove the used filter cartridge.
- Step 4: Insert the replacement cartridge.
- Step 5: Reassemble the product and restore the water supply.
The replaceable cartridge design allows the main housing to remain installed while the internal cartridge is renewed.
Applications
- Municipal Tap Water Treatment
- Residential Anti-Scale Water Treatment
- Inline Water Filtration
- Residential Plumbing Systems
- Scale-Control Water Treatment Projects
- Compact Water Treatment Installations
Target B2B Buyers
- Water Treatment Distributors
- Plumbing Product Wholesalers
- Residential Water Treatment Installers
- Water Treatment OEM Brands
- Building Material Importers
- Plumbing System Suppliers
- Water Treatment Project Contractors
FAQ
What is the filtration accuracy?
The filtration accuracy is 400 microns.
What is the connection size?
The standard connection size is 1/2 Inch.
What is the clean water flow?
The specified clean water flow is 23 L/min ±0.05% / 5.98 GPM.
What is the working pressure range?
The working pressure range is 0.1-1.6 MPa / 14.5-232 PSI.
What is the applicable water temperature?
The applicable water temperature is 0 C to +85 C / 32 F to 185 F.
What water quality is the product designed for?
It is designed for municipal tap water.
What material is used for the connector?
The connector material is H59-1 brass.
What material is used for the filter mesh?
The filter mesh uses 316L stainless steel.
How long is the filter cartridge life?
The specified cartridge life is 12 months.
Can the cartridge be replaced?
Yes. M81-BS is designed with an easy replaceable cartridge structure.
