J-700-BS Whole House Water Descaler with Pure Physical Ion Polarization No Electricity and 4 T/H Flow Rate
Product Overview

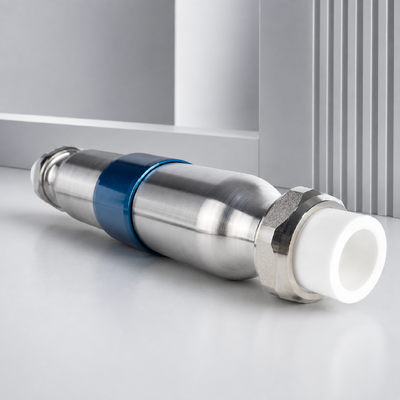

The J-700-BS is a compact whole house physical water descaler designed to integrate directly into residential water supply pipelines.
The system uses Pure Physical Ion Polarization technology and requires no magnetism and no electricity during operation.
With a maximum flow rate of 4 T/H (17.6 GPM) and a wide applicable pressure range of 0.15-1 MPa, it is suitable for residential municipal water systems.
Compared with the J-600-BS, the J-700-BS provides more flexible connection options with both:
connections, making it adaptable to a wider range of household pipeline configurations.
Its compact 250 x 60 x 60 mm design also allows easy integration with pre-filtration and other whole house water treatment equipment.
Product Specifications
| Specification |
J-700-BS |
| Model |
J-700-BS |
| Product Type |
Whole House Physical Water Descaler |
| Connector Size |
3/4 Inch, 1 Inch |
| Connector Material |
Premium-Grade Copper |
| Applicable Water |
Municipal Water |
| Applicable Water Pressure |
0.15-1 MPa / 21.76-145.03 PSI |
| Flow Rate |
≤4 T/H / ≤17.6 GPM |
| Applicable Water Temperature |
0°C to +99°C / 2°F to 210.2°F |
| Working Principle |
Pure Physical Ion Polarization |
| Item Weight |
1.222 KG |
| Package Weight |
1.553 KG |
| Product Dimensions |
250 x 60 x 60 mm / 9.8 x 2.4 x 2.4 Inch |
| Package Dimensions |
330 x 91 x 91 mm / 13 x 3.6 x 3.6 Inch |
| Certifications Shown on Product Sheet |
CE, NSF, RoHS, SGS |
Key Features
Pure Physical Ion Polarization
The J-700-BS uses Pure Physical Ion Polarization technology for physical scale prevention in household water systems.
Magnetism-Free and Electricity-Free
No magnetism or electrical power is required during operation, simplifying system installation and everyday use.
4 T/H Whole House Flow Rate
With a maximum flow rate of 4 T/H (17.6 GPM), the unit is designed for residential whole house water supply applications.
3/4 Inch and 1 Inch Connection Options
Two connection sizes provide greater flexibility for different residential plumbing systems and installation requirements.

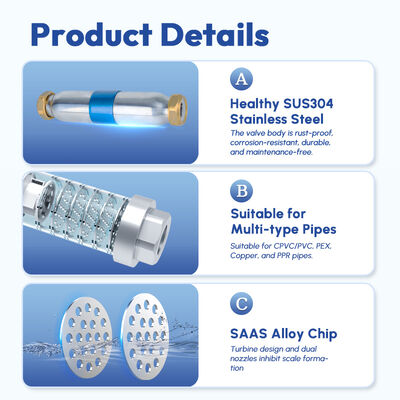

Premium-Grade Copper Connector
The J-700-BS uses premium-grade copper connectors for connection to household water pipelines.
Wide Operating Pressure Range
Designed for water pressure from 0.15 MPa to 1 MPa (21.76-145.03 PSI).
Wide Applicable Water Temperature
Supports municipal water temperatures from 0°C to +99°C, providing flexibility for different household water supply configurations.
Compact Inline Design
With dimensions of only 250 x 60 x 60 mm, the unit can be installed without requiring a large amount of space.
Long-Life, Low-Maintenance Design
The product is designed around a simple physical treatment principle, reducing routine maintenance requirements.
Safe and Eco-Friendly Concept
The product operates without electrical power and is positioned as a physical water treatment solution for residential systems.
Main Selling Points
Dual Connection Options:
Available in both 3/4 inch and 1 inch configurations to meet different whole house plumbing requirements.
Non-Electric Operation:
No electricity is required, making installation simpler and reducing operating requirements.
Whole House Capacity:
Up to 4 T/H water flow supports typical residential whole house applications.
Compact Installation:
The 250 x 60 x 60 mm body can be conveniently integrated into existing household water pipelines.
Physical Scale Prevention:
Pure Physical Ion Polarization technology provides an alternative physical approach to scale management.
Easy System Integration:
Designed to work together with a pre-filter as part of a complete household water treatment configuration.
Applications
The J-700-BS is suitable for:
- Residential whole house water systems
- Municipal water supply pipelines
- Household scale prevention applications
- Plumbing system protection
- Water heater upstream treatment
- Household appliance water supply protection
- Whole house pre-treatment systems
- Non-circulating hot water systems
Installation
The product sheet provides two recommended installation configurations.

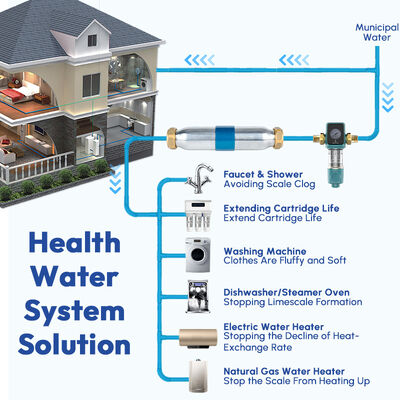

Standard Whole House Water Supply System
Recommended installation sequence:
Intake Valve → Water Meter → Water Pipe → Pre-Filter → J-700-BS Central Water Descaler
Installing the descaler after a pre-filter can help form a more complete household water treatment configuration.
Non-Circulating Hot Water System
Recommended sequence:
Intake Valve → Water Meter → Water Pipe → Pre-Filter → J-700-BS Central Water Descaler → Hot Water Equipment
The actual installation should be selected according to:
- Pipeline diameter
- Available installation space
- Water pressure
- Water flow requirements
- Connection size
Suitable B2B Customers
The J-700-BS is suitable for:
- Water treatment distributors
- Whole house water treatment dealers
- Plumbing wholesalers
- Residential water treatment installers
- Water filtration companies
- Home improvement suppliers
- HVAC and plumbing contractors
- OEM/ODM water treatment brands
FAQ
Q1: Does the J-700-BS require electricity?
No. The J-700-BS operates without electricity or magnetism.
Q2: What is the working principle?
The product sheet specifies Pure Physical Ion Polarization as the working principle.
Q3: What connection sizes are available?
The J-700-BS is available with:
connections.
Q4: What is the maximum water flow?
The stated maximum flow rate is:
4 T/H / 17.6 GPM
Q5: What water pressure can it handle?
The applicable water pressure range is:
0.15-1 MPa / 21.76-145.03 PSI
Q6: What type of water is it designed for?
The applicable water source specified on the product sheet is:
Municipal Water
Q7: What is the connector material?
The connector is made of Premium-Grade Copper.
Q8: Can it be installed together with a pre-filter?
Yes. The product sheet specifically shows the J-700-BS installed after a pre-filter.
Q9: What is the product size?
The unit measures:
250 x 60 x 60 mm
Q10: Is this a traditional salt-based water softener?
No. The J-700-BS is a physical water descaler / scale prevention device. It is not an ion-exchange water softener designed to remove calcium and magnesium hardness from water.
