Product Details:
|
| Power: | 110V | Temperature Rating: | 33.8°F-122°F |
|---|---|---|---|
| Pressure Range: | 0-7.5 Bar | Water Flow Rate: | 1.5-2.5 GPM |
| Capacity: | 15000 Grains | Clean Water Flow: | 23L/min ±0.05% |
| Highlight: | APP Remote Monitoring Water Leak Detector,Dual Power Supply Water Management System,3/4 Inch Connection Water Leakage Sensor |
||

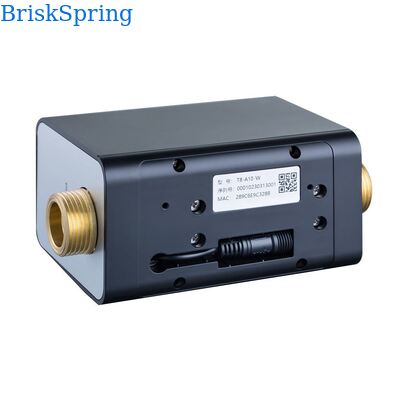

The BriskSpring T8-A10-BS Whole House Water Leakage Sensor Detector is designed for residential whole-house water management systems. It combines professional mode settings, multiple water quality monitoring, mobile APP remote monitoring and integrated valve control in one compact unit.
The product supports 3/4 inch connection, with 1/2 inch and 1 inch options available, and uses premium H59-1 brass connectors with an ABS plastic housing. With a measuring range of 2.0 L/H to 4000 L/H, it is suitable for household municipal tap water systems.
The unit supports both external power input and a 3.6V non-rechargeable lithium battery, providing flexible power supply options for residential installation.
![]()
![]()
![]()
| Attribute | Specification |
|---|---|
| Model Number: | T8-A10-BS |
| Product Type: | Whole House Water Leakage Sensor Detector |
| Connector: | 3/4 Inch, 1/2 Inch or 1 Inch Available |
| Connector Material: | Premium H59-1 Brass |
| Shell Material: | ABS Plastic |
| Measuring Range: | 2.0 L/H - 4000 L/H |
| Applicable Water Pressure: | 0.1 MPa - 0.75 MPa |
| Applicable Water Temperature: | +1°C - +50°C |
| Applicable Water Quality: | Municipal Tap Water |
| External Power Input: | 100V - 240V, 50/60Hz |
| Output: | 5V, 1A |
| External Battery: | Non-Rechargeable Lithium Battery 3.6V |
| Certifications: | NSF, RoHS, SGS |
| Item Weight: | 1.25 KG |
| Product Dimensions: | 174 x 78 x 109 mm |
| Included Components: | Power Adaptor, Nuts, Manual |
![]()
The control system provides professional mode settings for different household water management requirements.
The system integrates multiple water quality monitoring functions to support intelligent whole-house water management.
Supports mobile APP remote monitoring, allowing users to access system information more conveniently.
The product supports both external power input and a 3.6V non-rechargeable lithium battery.
The control panel includes valve control functions for convenient operation of the household water line.
The measuring range is 2.0 L/H to 4000 L/H, covering a wide range of residential water-use conditions.
Premium H59-1 brass connectors provide a solid connection structure for residential plumbing installation.
The compact ABS housing integrates the control system, water inlet, water outlet and valve control into one unit.
