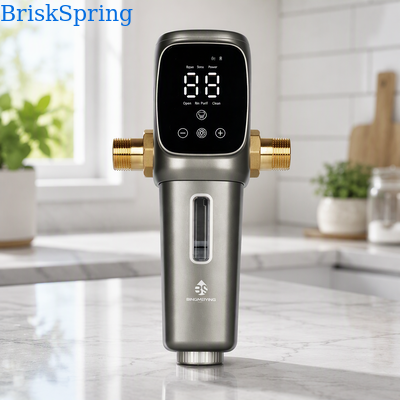

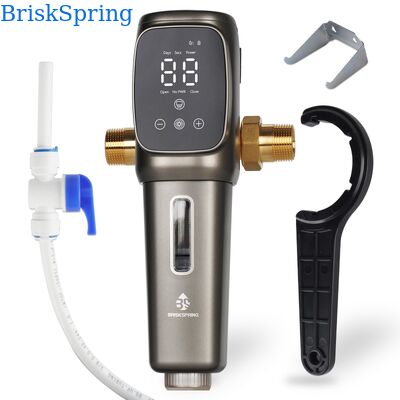

Fully Automatic Whole House Water Prefilter with SUS 316L Stainless Steel Mesh

The integrated automatic backwashing system automatically cleans the filter mesh when sediment accumulates. Through reverse water flow, trapped impurities are effectively removed from the filter surface, restoring filtration efficiency without manual disassembly or cleaning.

Benefits:

• No frequent manual maintenance
• Stable filtration performance
• Reduced cleaning workload
• Extended filter service life

Installed at the main water inlet, the prefilter provides comprehensive protection for the entire household water system. It helps prevent sediment accumulation in:

• Faucets
• Shower systems
• Water heaters
• Washing machines
• Dishwashers
• Household pipelines

Protecting downstream equipment and extending service life.

The 40 μm precision SUS 316L stainless steel filter mesh efficiently captures:

• Sand particles
• Rust flakes
• Dirt
• Silt
• Suspended solids

Helping improve water clarity while reducing contamination risks inside household plumbing systems.

The optimized internal filtration structure ensures efficient impurity removal while maintaining low pressure loss. With a flow rate of up to 6 tons per hour (6T/H), the system supports multiple water outlets operating simultaneously while maintaining stable water pressure.

The automatic flushing system operates through water pressure without requiring electrical connection.

Advantages include:

• Energy saving
• Reliable operation
• Easy installation
• Lower operating cost

Making it suitable for both residential and commercial applications.

The filter combines:

• Food-grade SUS 316L stainless steel filter mesh
• H59-1 international standard copper body

Providing:

• Excellent corrosion resistance
• High mechanical strength
• Long-term durability
• Reliable sealing performance

Suitable for different water environments.

The automatic self-cleaning structure reduces the need for manual cleaning and frequent filter replacement.

It helps:

• Lower maintenance costs
• Reduce downtime
• Improve filtration efficiency
• Extend product lifespan

Household water enters the water Pre-filter through the main water supply pipe. The prefilter acts as the first protection stage before water enters the entire household system.

Water passes through the 40 μm SUS 316L stainless steel filter mesh. The fine filtration structure captures sediment, rust, sand, and suspended particles while allowing clean water to continue flowing through the system.

During operation, filtered impurities gradually accumulate on the filter mesh. When cleaning is required, the automatic backwash system activates according to the preset cleaning cycle.

During backwashing, water flow direction is reversed. The reverse water pressure washes away trapped contaminants from the filter mesh, while the internal scraping structure helps remove stubborn particles attached to the surface.

The removed impurities are discharged through the flushing outlet. After cleaning, the system automatically returns to normal filtration mode, maintaining continuous protection without replacing filter components.

✅ Intelligent Automatic Self-Cleaning
Automatic backwashing eliminates frequent manual cleaning and ensures consistent filtration performance.

✅ Protects the Entire Water System
One installation at the main inlet protects all household pipelines, faucets, showers, and water appliances.

✅ High-Efficiency Sediment Filtration
40μm precision filtration effectively removes rust, sand, and suspended particles.

✅ No Electricity Required
Water-powered operation provides an energy-saving and reliable filtration solution.

✅ Durable Materials & Long Service Life
Premium SUS 316L stainless steel and copper construction ensure stable performance for years.

✅ Low Maintenance Solution
Automatic flushing reduces maintenance frequency and lowers long-term operating costs.

✅ Suitable for Multiple Applications
Ideal for:

• Houses
• Apartments
• Villas
• Hotels
• Commercial buildings

Providing professional whole-house water protection.
