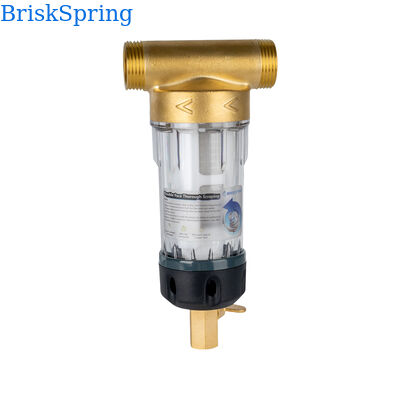

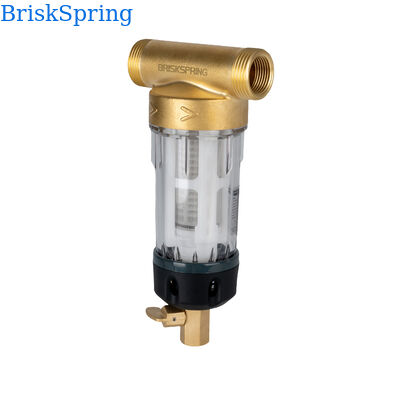

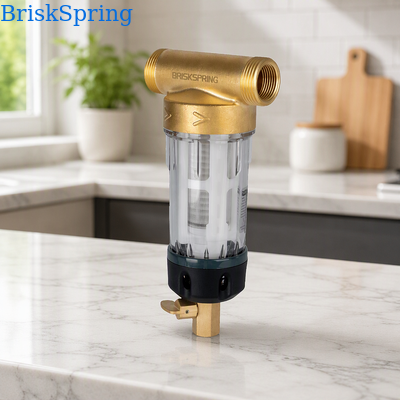

Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh

Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh
Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh
Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh

Large Image :  Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh

Product Details:
Place of Origin: Zhejiang, China
Brand Name: BRISKSPRING
Certification: NSF, RoHS, SGS
Model Number: SRT F3-Q3
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Depend on the QTY
Packaging Details: color box + transparent poly sealing + plain solid cartons for export
Delivery Time: 10-30 Days, Depend on the QTY
Payment Terms: T/T,L/C,PayPal,D/A,D/P
Supply Ability: a production capacity of 15 million sets products per year
Contact Now

Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh

Description
Application: Commercial, Garage, Hotel, Household Color: Yellow
Filter Mesh Material: Food Grade SS316L Copper Material: 59-1 International Standard Copper
Filtering Mesh Accuracy: 40 Micro Connector Size: 3/4" (available 1/2" Or 1" Or PPR)
Pressure Drop: >30 Kpa Product Name: Auto Flushing Water Filter
Applicable Water Pressure: 0.15-1.5MPa Filter Life: 1 Year
Flow Rate: 4T
Highlight:

40 Micron Filtration Spin Down Sediment Filter

,

Food Grade SS316L Mesh Water Pre Filter

,

Reusable Design Whole House Water Filter

Whole House Spin Down Sediment Water Pre Filter with 40 Micron Filtration Reusable Design and Food Grade SS316L Mesh
Product Overview

Whole House Spin Down Sediment Filter, Reusable Pre-Filter System for Rust, Sand and Impurity Removal. In the quest for cleaner, safer water, innovation continues to drive the evolution of filtration systems. Among the array of options available, spin down water filters stand out as a remarkable solution, offering a blend of simplicity, effectiveness, and efficiency.

Technical Specifications
Specification Details
Filtration Accuracy 40 Micron
Flow Rate 4 T/H
Material Plastic
Applications Commercial, Garage, Hotel, Household
Filter Life More Than 3 Years
Power Source Manual
Connector Size 3/4" or 1"
Pressure Range 0.15 ~ 1MPa
Filter Mesh Material Food Grade SS316L
Copper Material H59-1 International Standard Copper
Certifications NSF, RoHS
How It Works

The mechanism behind spin down filters is elegant in its simplicity. Water enters the filter housing and is directed into a spinning chamber. As the water spins rapidly, heavier particles like sand, sediment, and rust are flung outward by centrifugal force. These particles then settle at the bottom of the filter, away from the clean water flowing through the center.

Spin-down water filter mechanism diagram showing centrifugal separation process
Key Benefits
Improved Water Quality

Removes sediment and particles for cleaner, safer water

Extended Appliance Lifespan

Protects plumbing fixtures, water heaters, and appliances from sediment damage

Low Maintenance

Simple periodic flushing keeps the filter running smoothly

Cost-Effective

Long-lasting performance with minimal maintenance requirements

Versatile Applications

Suitable for home, business, farm, or industrial facility use

BriskSpring water filter installed in home water system
Why Choose BriskSpring Water Filter?
First Line of Defense

Acts as the primary stage in your whole house water filtration system, protecting appliances like faucets, shower heads, water heaters, and washing machines from sediment damage.

Reusable & Extended Filter Life

No disassembly required - simply rotate the scraping knob to remove trapped particles and turn the drain valve to flush out sediments. The double-sided scrape feature prolongs sediment filter life.

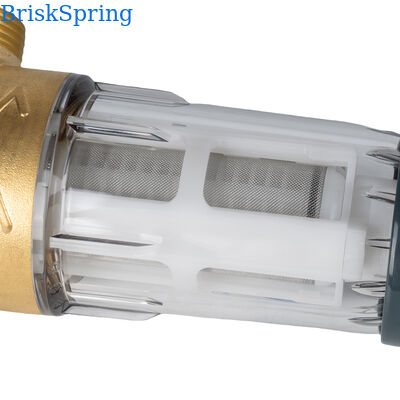

Close-up view of filter scraping mechanism showing double-sided design
100% Safe Materials

Constructed with food-grade stainless steel mesh filter screens and lead-free brass components. The BPA-free water filter bottle withstands temperatures as low as -30°C and has passed rigorous water hammer resistance testing.

Food-grade materials certification and safety documentation
Easy Installation

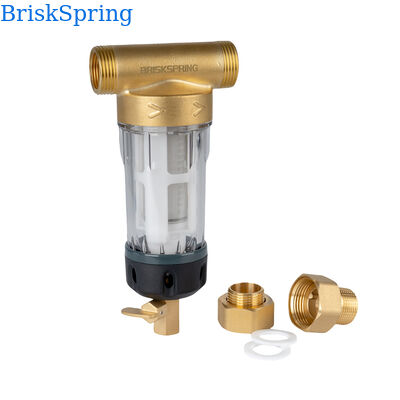

Includes three types of fittings (1" MNPT, 3/4" FNPT, and 3/4" MNPT) to accommodate different pipe sizes. Quick installation won't affect water pressure levels.

Important Notes
  • Only suitable for municipal tap water (+1°C to +40°C). Not for waste water or corrosive liquids.
  • Ensure water flow direction marked on valve body aligns with pipe flow direction.
  • All installation, testing, and maintenance should be performed by professionals.

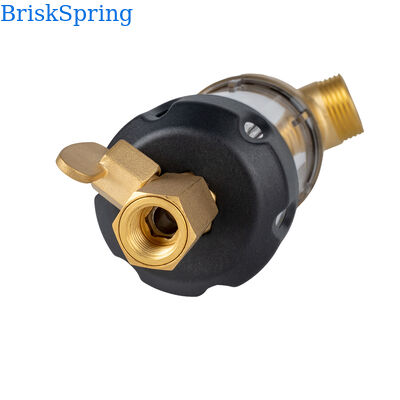

Proper water flow direction indicator on valve body
Installation Guide

The installation point for a spin-down filter or sediment trap is typically directly after the pressure tank in a well system or prior to a whole house filtration system in municipal water applications.

Typical spin-down filter installation diagram showing proper placement Filter connection types illustration showing different fitting options
Key Features

Automatic Backwash Cleaning | 40 μm Precision Filtration | SUS 316L Filter Mesh | 6T/H High Flow Rate | Sediment Rust Sand Removal | No Electricity Required | Whole House Protection | Low Maintenance | Long Service Life

Recommended Combination with Water Descaler

For complete whole-house water protection, we recommend combining the BriskSpring Stacked Disc Spin Down Sediment Filter with a Physical Water Descaler.

The Water Descaler provides the second protection stage by:

  • Reducing limescale formation
  • Preventing scale adhesion
  • Protecting pipes and heating equipment

Together, they create a better whole-house water treatment solution.

Frequently Asked Questions
Q1: Are you a manufacturer?

Yes. We are a leading water filtration manufacturer in China, recognized as an industry benchmark enterprise and a standards drafting unit. We have developed multiple generations of water filtration technologies and a full range of product series.

Q2: Can we use our logo/brand?

Yes. We provide OEM and ODM services and have long-term partnerships with globally recognized brands such as iSpring, and other leading international companies.

Q3: Can you provide samples for quality testing?

Yes. Samples are available, and we offer them at preferential pricing for evaluation purposes.

Q4: What is the delivery time for orders?

We have a monthly production capacity of up to 100,000 units. Lead time depends on order quantity, model selection, and packaging requirements, typically ranging from 7 to 35 days.

Q5: Why should I choose BRISKSPRING?

We operate a fully integrated production chain covering industrial design, mold development, plastic injection, and copper component manufacturing. All core parts are produced in-house, ensuring stable quality and cost efficiency. Most of our products are certified to international standards, including NSF, SGS, and RoHS.

Let's Work Together

Contact Cynthia for samples or custom proposals:

Email: beishun@briskspring.com

WhatsApp: +86 19965392086

Our factory produces 150,000 units monthly, with a 30-35 working days delivery time. Certified by NSF SGS and trusted in over 30 countries.
