BRISKSPRING Whole House Water Filter with 40 Micron Filtration Manual Backwash and Stacked Disc Technology
BRISKSPRING Self Cleaning Whole House Water Filter System Manual Backwash Sediment Pre Filter with 40-300 Micron Filtration and 5 T/H capacity.
Product Introduction
The BriskSpring Upgraded Stacked Disc Spin Down Sediment Filter is an advanced whole-house pre-filtration solution designed to remove sediment, rust, sand, and other large impurities from residential water systems.
Featuring upgraded stacked disc filtration technology, the filter provides a larger filtration area and higher dirt-holding capacity compared with traditional mesh filters. During backwashing, the discs automatically separate to create powerful cleaning channels, effectively flushing away trapped contaminants and reducing maintenance frequency.
Equipped with an automatic self-cleaning system, dual O-ring leak-proof sealing, and a built-in pressure gauge, this pre-filter delivers reliable protection for household plumbing, water heaters, washing machines, and other appliances.

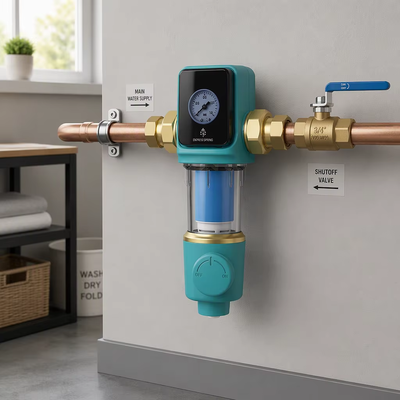

Installed at the main water inlet, it serves as the first defense for whole-house water quality, ensuring cleaner water, reduced pipe blockage, and longer equipment lifespan.
Product Specifications
| Attribute |
Specification |
| Product Type |
Whole House Spin Down Sediment Filter |
| Filtration Technology |
Stacked Disc Filtration Technology |
| Filtration Precision |
Customizable |
| Filter Material |
PP Stacked Discs |
| Housing Material |
Copper-Clad Plastic / Food-Grade PPR |
| Water Source |
Municipal Water |
| Installation Position |
Main Water Inlet |
| Cleaning Method |
Automatic Backwash Self-Cleaning |
| Power Source |
Water Flow Driven |
| Applicable Water Temperature |
5℃-40℃ |
| Working Pressure |
Customizable |
| Connection Size |
3/4", 1" |
| Application |
Residential, Villa, Hotel, Commercial Buildings |
Filtration Technology Principle

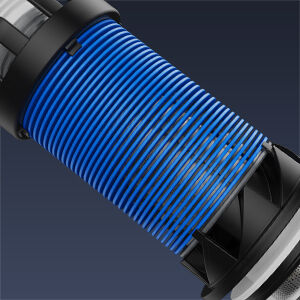

1. Upgraded Stacked Disc Filtration Technology
Unlike traditional mesh filters, the stacked disc filter uses multiple precision-engineered filter discs stacked together to form a three-dimensional filtration structure.
- Water passes through multiple disc layers
- Sediment, rust, sand, and impurities are trapped between the disc grooves
- Larger filtration surface improves dirt-holding capacity
- Reduces clogging frequency
This design provides efficient pre-filtration while maintaining stable water flow.
2. Automatic Self-Cleaning Backwash System
When cleaning is required, the water flow activates the backwash process.
- Filter discs automatically separate
- Internal micro-flow channels are created
- High-speed water flow removes trapped impurities
- Contaminants are discharged through the drain outlet
This eliminates frequent manual disassembly and extends filter service life.
3. Dual O-Ring Leak-Proof Sealing Design
The upgraded double O-ring sealing structure provides reliable sealing between filter housing, connection parts, and internal components.
- Reduced leakage risk
- Improved pressure resistance
- Stable long-term operation
4. Real-Time Pressure Monitoring
The built-in pressure gauge allows users to monitor water pressure changes instantly.
- Identify abnormal pressure conditions
- Determine cleaning timing
- Protect household appliances from excessive pressure
Key Advantages
- High-Efficiency Sediment Removal - Effectively removes sand, rust particles, suspended solids, and large impurities, helping prevent pipe blockage and improve household water quality.
- Self-Cleaning & Low Maintenance - No frequent filter replacement, no complicated disassembly, easy maintenance, and longer service life compared with traditional sediment filters.
- Large Flow Capacity for Whole-House Applications - Optimized internal water channels ensure smooth water flow, stable water pressure, and continuous household water supply suitable for multiple water usage points simultaneously.
- Safer Lead-Free Waterway Design - Using copper-clad plastic technology with food-grade PPR material and brass outer layer for enhanced protection and safer household water quality.
- Protects Household Appliances - As the first filtration stage, it helps protect water heaters, washing machines, dishwashers, faucets, and shower systems by reducing failures caused by sediment accumulation.
- Smart Pressure Protection - The integrated pressure gauge provides real-time system monitoring, helping users maintain safe operation of household plumbing systems.
Application Scenarios
Residential Homes & Villas - Provides whole-house sediment protection for daily water use.
Hotels & Apartments - Helps maintain stable water quality and reduce plumbing maintenance.
Commercial Buildings - Protects water equipment and extends system lifespan.
Why Choose BriskSpring Stacked Disc Spin Down Filter?
- Advanced Filtration Structure - The upgraded stacked disc technology provides higher filtration efficiency and better cleaning performance compared with conventional sediment filters.
- Maintenance-Friendly Design - The automatic backwash system reduces manual cleaning frequency and provides long-term reliable operation.
- Premium Material Safety - Food-grade waterway materials and lead-free design ensure safer use in residential water systems.
- Professional Manufacturing Capability - BriskSpring integrates product design, mold development, injection molding, and brass component manufacturing with advanced production capabilities.
Recommended Combination with Water Descaler
For complete whole-house water protection, we recommend combining the BriskSpring Stacked Disc Spin Down Sediment Filter with a
Physical Water Descaler.
The
Water Descaler provides the second protection stage by reducing limescale formation, preventing scale adhesion, and protecting pipes and heating equipment.
Together, they create a better whole-house water treatment solution.
FAQ
Q1: Are you a manufacturer?
A: Yes. We are a leading water filtration manufacturer in China, recognized as an industry benchmark enterprise and a standards drafting unit. We have developed multiple generations of water filtration technologies and a full range of product series.
Q2: Can we use our logo/brand?
A: Yes. We provide OEM and ODM services and have long-term partnerships with globally recognized brands such as iSpring, and other leading international companies.
Q3: Can you provide samples for quality testing?
A: Yes. Samples are available, and we offer them at preferential pricing for evaluation purposes.
Q4: What is the delivery time for orders?
A: We have a monthly production capacity of up to 100,000 units. Lead time depends on order quantity, model selection, and packaging requirements, typically ranging from 7 to 35 days.
Q5: Why should I choose BRISKSPRING?
A: We operate a fully integrated production chain covering industrial design, mold development, plastic injection, and copper component manufacturing. All core parts are produced in-house, ensuring stable quality and cost efficiency. Most of our products are certified to international standards, including NSF, SGS, and RoHS.
