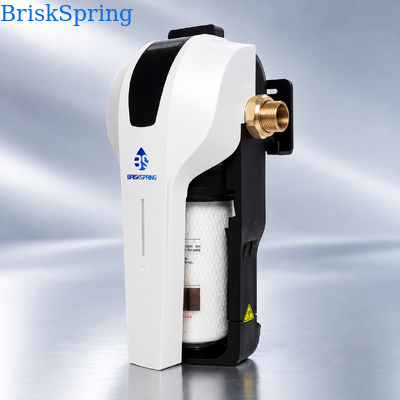

Whole House Sediment Water Pre Filter with Quick Change Cartridge Heavy Duty High Pressure Filtration System

The BriskSpring N1-2C-BS is a compact central water purifier designed for residential point-of-entry water filtration. Combining a replaceable composite cartridge, integrated water isolation control, and a three-color LED maintenance reminder, this system offers a practical filtration solution for homes and residential water treatment installations.

With a rated flow capacity of 3 T/H (13.2 GPM), the N1-2C-BS is designed to provide a first-stage water filtration solution for municipal tap water before it reaches household plumbing fixtures and appliances.

The standard PP pleated and carbon fiber composite cartridge combines particulate filtration with carbon-based water treatment. Its innovative quick-release structure allows convenient cartridge access without conventional filter housing tools.

• 3 T/H Water Flow: Suitable for residential main water supply applications.

• 1-10 Micron Filtration Range: Filtration precision depends on the selected cartridge configuration.

• Quick-Change Cartridge: Tool-free access designed to simplify maintenance.

• Integrated Water Isolation: Built-in shutoff and depressurization control for cartridge servicing.

• Three-Color LED Reminder: Visual maintenance guidance powered by a replaceable battery.

• Compact Wall-Mounted Design: Organized structure for residential plumbing installations.

• H59-1 Brass Connectors: Metal fitting configuration with an integrated PPR water-contact pathway.

Simplify Routine Maintenance

Traditional filter housings often require separate tools and additional maintenance steps.

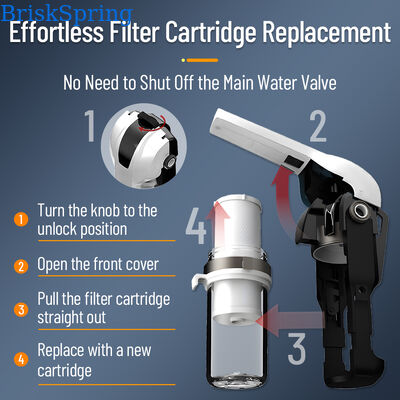

The N1-2C-BS features a quick-release front assembly, allowing the cartridge to be accessed through a straightforward four-step process:

1. Turn the control knob to the unlock position.

2. Open the front cover.

3. Pull out the filter cartridge.

4. Install a replacement cartridge and secure the assembly.

The system is designed to make filter replacement convenient for homeowners and professional service technicians.

For water treatment distributors and installation companies, simplified cartridge access can help streamline routine servicing and improve the end-user experience.

Convenient Maintenance Without Closing the Main Water Valve

The built-in valve control is designed to isolate the filter chamber and release pressure before cartridge replacement.

This allows routine filter maintenance without requiring the building's main water valve to be closed, provided the system is operated according to its installation and maintenance instructions.

The integrated control mechanism combines water isolation and cartridge access in a compact assembly.

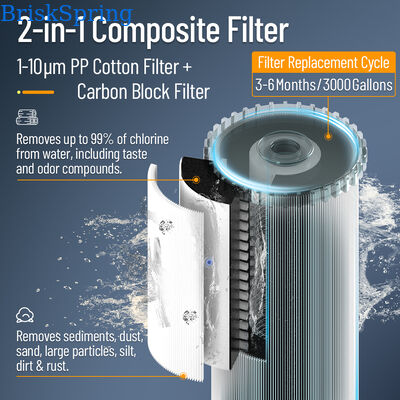

Two Filtration Functions in One Cartridge

The standard filter cartridge combines PP pleated filtration media with carbon fiber treatment material.

The PP filtration media is designed to capture suspended particles, including sediment, sand, silt, and rust particles within the cartridge's applicable filtration range.

Carbon-based treatment media provides an additional water treatment stage for selected impurities and water quality concerns.

The product range also illustrates PET pleated, carbon-based, and PP melt-blown cartridge technologies. Suitable cartridge configurations can be discussed according to filtration requirements and model compatibility.

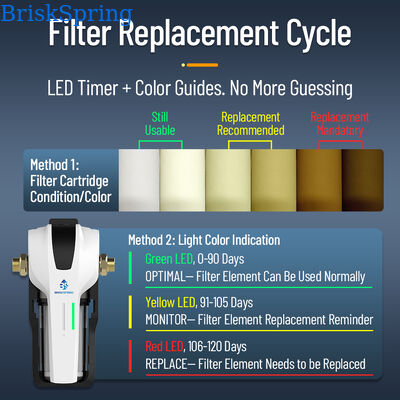

Simple Visual Maintenance Guidance

The N1-2C-BS features a battery-powered, three-color LED system that helps users follow the programmed filter maintenance schedule.

• Green LED, Days 0-90: Normal scheduled operating period.

• Yellow LED, Days 91-105: Cartridge replacement reminder.

• Red LED, Days 106-120: Cartridge replacement required according to the programmed schedule.

The LED indicator provides time-based maintenance guidance rather than directly measuring water quality or cartridge contamination.

Actual cartridge life depends on incoming water quality, usage, and maintenance conditions.

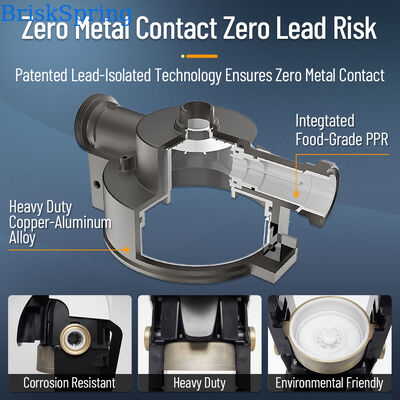

Designed to Separate Water Flow from Surrounding Metal Components

The filter head features an integrated PPR water-contact pathway designed to separate flowing water from surrounding metallic fittings.

H59-1 brass connection components provide the threaded connection structure for plumbing installation.

This design combines metal connection components with a dedicated internal polymer water pathway, supporting a thoughtful approach to water-contact material selection.

The compact vertical design combines the filter housing, cartridge compartment, operating mechanism, and maintenance indicator in one integrated unit.

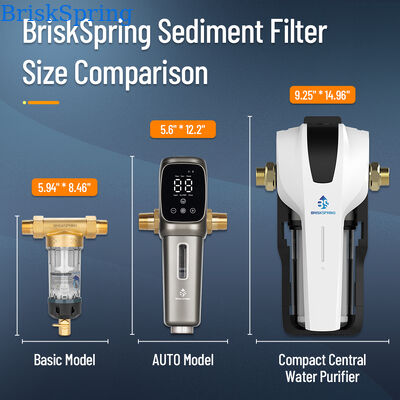

With product dimensions of 380 x 235 x 158 mm, the N1-2C-BS is designed for residential installation locations where convenient access and organized plumbing are important.

Available 3/4 inch and 1 inch connection options allow installers to select a configuration that matches the intended piping system.

Thread specifications should be confirmed before ordering.

The replaceable cartridge design allows the filtration media to be renewed while retaining the main purifier assembly.

For distributors and water treatment service providers, this supports an ongoing replacement cartridge business and makes routine maintenance part of the customer service offering.

Cartridge selection should be based on water quality, filtration requirements, and confirmed system compatibility.

BriskSpring focuses on water filtration and water treatment solutions for residential and professional applications.

Our product development approach emphasizes functional product design, practical installation, and convenient maintenance.

The N1-2C-BS combines filtration, quick-release maintenance, and visual replacement reminders in a product suitable for water treatment distributors, plumbing wholesalers, and installation partners.

The replaceable filter system allows business customers to build product offerings around both complete water filtration units and ongoing cartridge supply.

Detailed product specifications, installation structure information, and cartridge configuration discussions are available to support professional product evaluation and sourcing.

Installed on the main incoming water line to provide filtration ahead of household fixtures.

Suitable for residential projects requiring a compact water filtration system with convenient cartridge maintenance.

A practical option for installers upgrading conventional point-of-entry filtration arrangements.

Suitable for wholesale product portfolios focused on whole-house filtration and replaceable cartridge systems.

The quick-release structure and maintenance reminder make the system relevant to installation contractors and after-sales service providers.

Can serve as an upstream filtration stage for compatible water treatment equipment, subject to application requirements.

BriskSpring welcomes discussions with importers, distributors, and water treatment brands about their market requirements.

Available project discussions may include:

• Brand logo and private-label packaging requirements.

• Selection of 3/4 inch or 1 inch connection options.

• Cartridge media selection according to water treatment needs.

• Product documentation and packaging presentation.

• Replacement cartridge supply planning.

• Market-specific product configuration requirements.

Customization feasibility, minimum order quantity, and applicable technical documentation are confirmed according to the project.

Looking for a compact whole-house water filter for your distribution network or residential water treatment projects?

Contact BriskSpring to discuss product specifications, cartridge configuration, sample evaluation, and wholesale cooperation.
